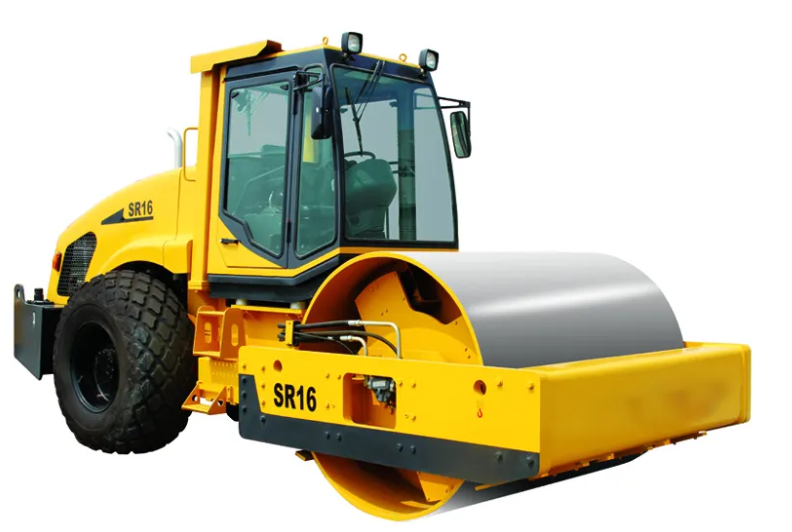

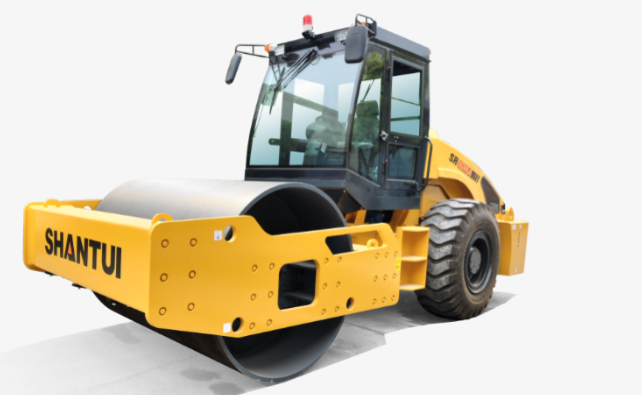

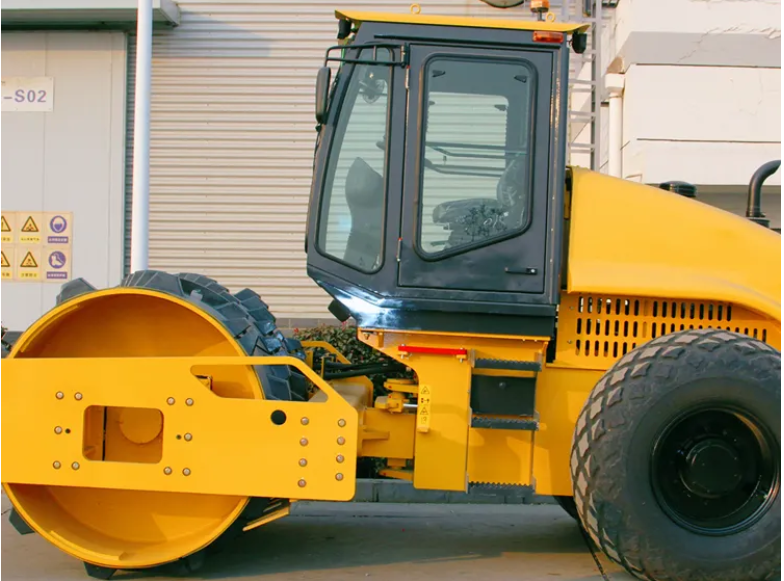

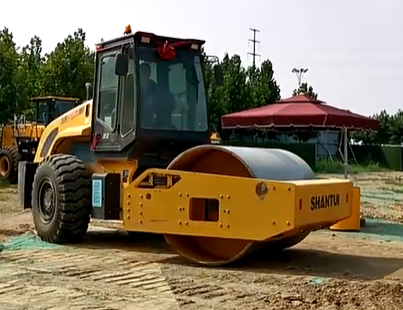

Shantui SR16MA 16T Road Roller

No.5005

External dimensions(mm): 6240*2280*3080

Engine brand: Weichai

Power/speed(kW/rpm): 118/2000

GET A QUOTE

SPECIFICATION

Configuration Selling Point

With the mechanically-driven high-torque special gearbox for rollers integrating a synchronizer, it is light for gear shifting; the single frequency & dual amplitude, electronically-controlled delay vibration and large excitation force guarantees good compaction performance; with the hydraulic steering and articulated frame, it is light and flexible in steering;

Ease Of Maintenance And Operation Comfort

The rear hood can be opened at a large angle for easy maintenance; the standard cab can be fitted with optional dual-purpose air conditioner

Adaptability To Diverse Working Conditions

It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions

Parameter	SR16MA
External dimensions(mm)	624022803080
Engine brand	Weichai
Power/speed(kW/rpm)	118/2000
Operating weight(kg)	16000
Front and rear load distribution	8250/7750
Vibration frequency low/high(Hz)	30
Minimum turning radius(mm)	6500
Excitation force(kN)	325/165
Amplitude(mm)	1.8/0.9
Gradeability	0.3
Speed(km/h)	For：2.5/5.0/10.5 ；Rev： 2.5/5.0
Emissions (Indicated as per China standards)	Eu stage II
