Configuration Selling Point
The engine customized by Weichai, an affiliated enterprise within the group, ensures exceptional efficiency and energy savings. It is also equipped with a large-flow main pump, paired with a low-pressure-loss main valve, to provide fast speed and high operational efficiency. Additionally, it features an intelligent electronic control system that allows for complete control of the machine status.
Ease Of Maintenance And Operation Comfort
The engine features a single-side maintenance design, ensuring convenient and easy maintenance. The machine is equipped with an integrated fuel pre-filter and externally located oil filters, enabling convenient installation and maintenance while keeping maintenance costs low. The compressor is also externally positioned, facilitating daily inspections.
Adaptability To Diverse Working Conditions
The large-torque swing and travel motors ensure efficient and reliable operation on slopes or muddy terrain. The bucket is designed with an extended width and shallower depth, featuring an optimized shape and teeth configuration to enhance its suitability for the working conditions of a small excavator. The machine also offers multiple preset working modes, allowing for easy switching based on working conditions.

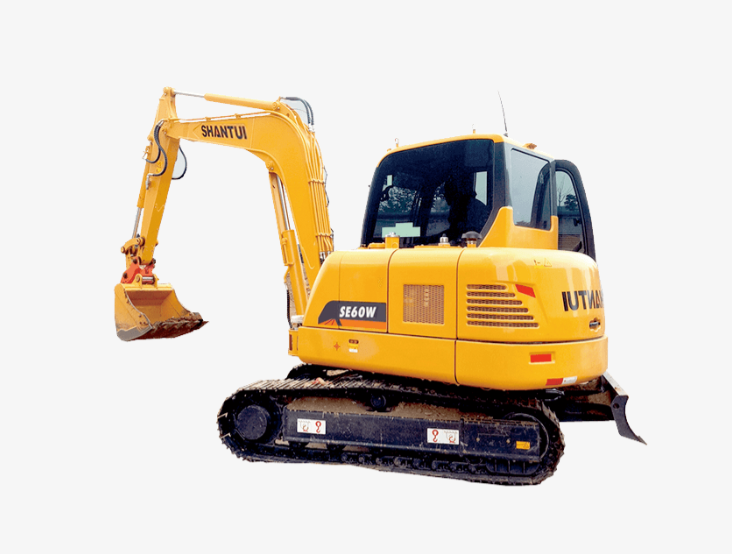

| Parameter | SE60W |
|---|---|
| Operating weight(kg) | 5960 |
| Engine power(kW/rpm) | 36.8/2200 |
| Bucket capacity(m³) | 0.22 |
| External dimensions(mm) | 5855*1880*2675 |
| Bucket rod digging force(kN) | 29 |
| Bucket digging force(kN) | 48 |
| Rotating speed(r/min) | 11 |
| Travel speed(km/h) | 2.3/4.0 |
| Maximum digging height(mm) | 5785 |
| Maximum digging distance(mm) | 6200 |
| Maximum digging depth(mm) | 3850 |
| Emissions (Indicated as per international standards) | Eu stage IIIA |
