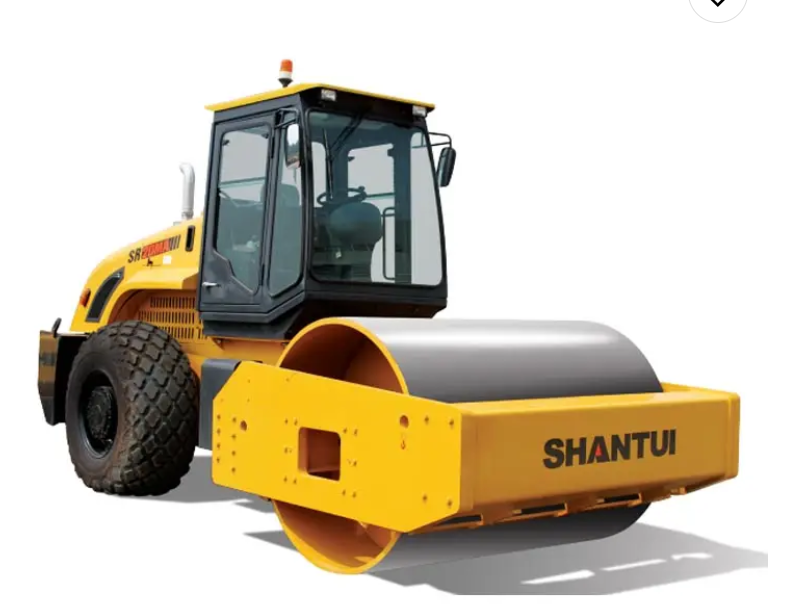

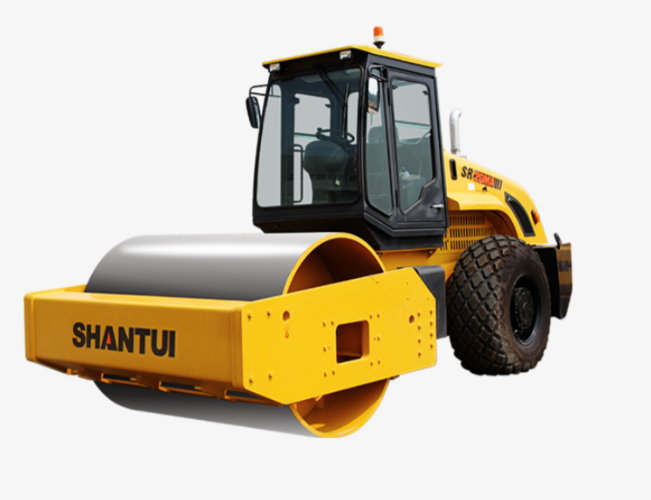

Shantui 20T SR20MA Single Drum Road Roller

No.5007

External dimensions(mm): 6229*2315*3180

Engine brand: Shangchai

Power/speed(kW/rpm): 128/1800

GET A QUOTE

SPECIFICATION

Configuration Selling Point

The vibration pump and vibration motor from world famous brands are adopted to guarantee high efficiency and stable performance; the vibrating drum is designed with uniform amplitude to improve the compaction performance of the product

Ease Of Maintenance And Operation Comfort

The new hexahedral cab of Shantui is adopted to offer a large driving space, good vision and comfortable operation; the filling structure for the gearbox is optimized for easy maintenance, and the hood has a large opening angle for easy maintenance

Adaptability To Diverse Working Conditions

It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions

Parameter	SR20MA
External dimensions(mm)	622923153180
Engine brand	Shangchai
Power/speed(kW/rpm)	128/1800
Operating weight(kg)	20000
Front and rear load distribution	10000/10000
Vibration frequency low/high(Hz)	29/35
Minimum turning radius(mm)	6100
Excitation force(kN)	380/280
Amplitude(mm)	2.0/1.0
Gradeability	0.3
Speed(km/h)	0-2.8,0-5.6,0-9.1
Emissions (Indicated as per China standards)	Eu stage II
