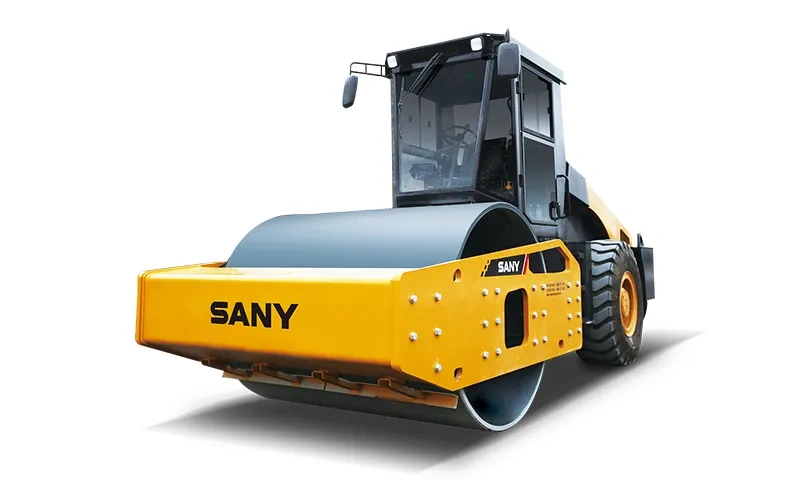

SANY SSR260C-8 Single Drum Roller

No.SSR260C-8
High Efficiency

· 10% greater excitation force than other products in the same category resulting in 16.7% greater production.

Extended Life Time

· The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.

· The engine air filter is raised and the air is filtered twice to protect the engine.

· The hydraulic system contains three stage filtration.

Operator Comfort

· Cab mounted on vibration damping mounts

· Cab temperature control

· Operator control forces have been reduced

Safety Features

· Rounded bumpers front and rear

· Large rear glass and sloped hood for greater visibility

  • SANY SSR260C-8 Single Drum Roller

SPECIFICATION

Compaction Mechanism
Centrifugal Force  420/310 kN
Drum Width  2170 mm
Nominal Amplitude  2.05/1.03 mm
Vibration Frequency  28/32 Hz

Engine
Emission  CHINA Ⅲ
Engine Model  SANY D07S3-245E0
Rated Power  180 kW

Maneuver Ability
Theoretical Gradeability Vibratory  40/50 %
Travel Speed  0~6.5 / 0~10.0 / 0~4.0 / 0~6.0 km/h

Weight and Load
Operating Weight  26000 kg
Weight at Drum  17000 kg
Weight at Rear Axle  9000 kg
