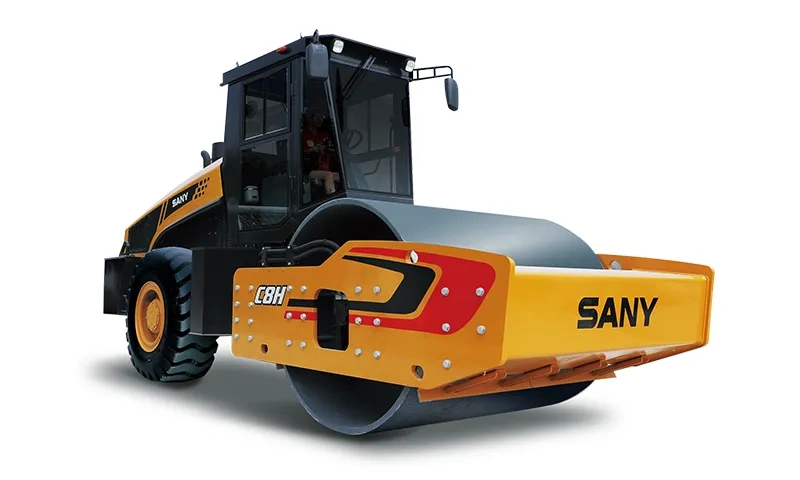

SANY SSR220C-8H Single Drum Roller

No.SSR220C-8H
High Efficiency

· 10% greater excitation force than other products in the same category resulting in 16.7% greater production.

Extended Life Time

· The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.

· The engine air filter is raised and the air is filtered twice to protect the engine.

· The hydraulic system contains three stage filtration.

Operator Comfort

· Cab mounted on vibration damping mounts

· Cab temperature control

· Operator control forces have been reduced

Safety Features

· Rounded bumpers front and rear

· Large rear glass and sloped hood for greater visibility

  • SANY SSR220C-8H Single Drum Roller

SPECIFICATION

Type  Single Drum (Dual Drive)

Compaction Mechanism
Centrifugal Force  390/280 kN
Drum Width  2130 mm
Nominal Amplitude   2.0/1.0 mm
Vibration Frequency  29/35 Hz

Engine
Emission  CHINA Ⅲ
Engine Model  WEICHAI WP6G200E331
Rated Power  147 kW

Maneuver Ability
Theoretical Gradeability Vibratory  45 %
Travel Speed  0~5.5 / 0~7.5 / 0~3.5 / 0~4.5 km/h

Weight and Load
Operating Weight  22000 kg
Weight at Drum  14600 kg
Weight at Rear Axle  7400 kg
