Model |

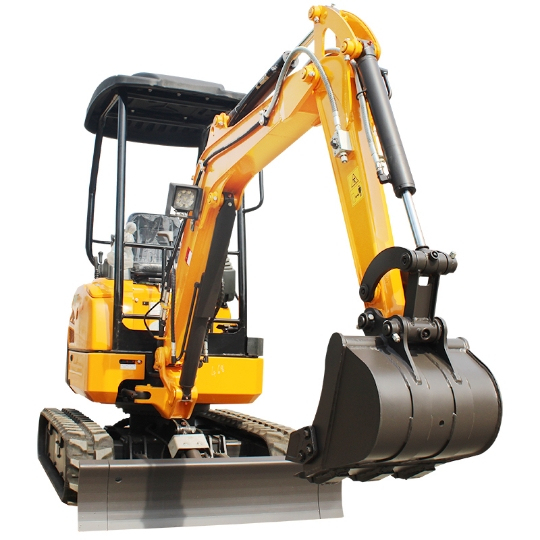

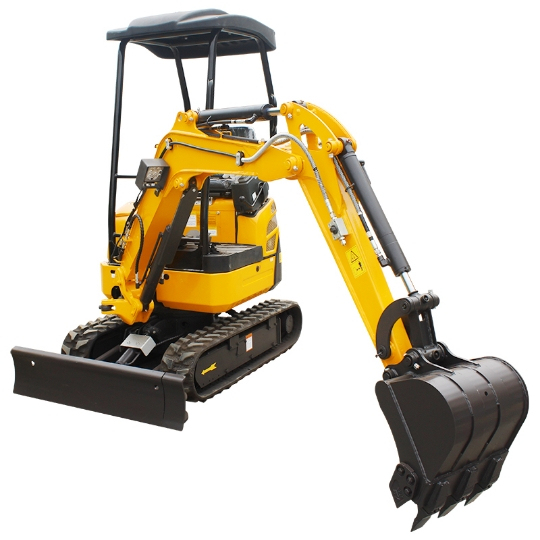

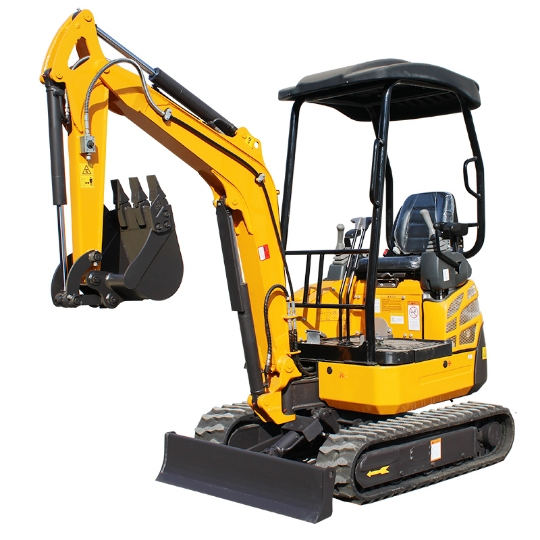

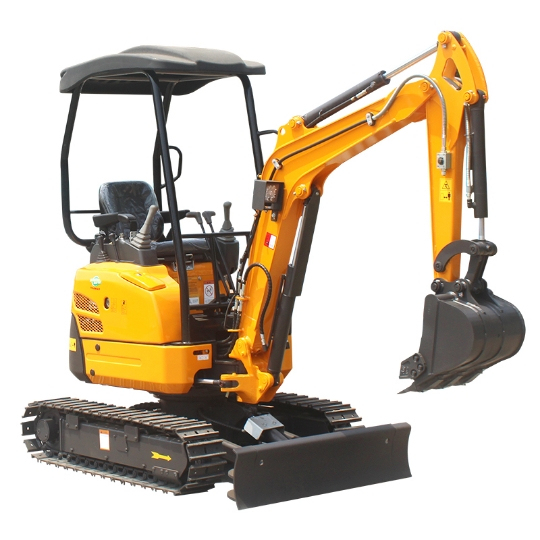

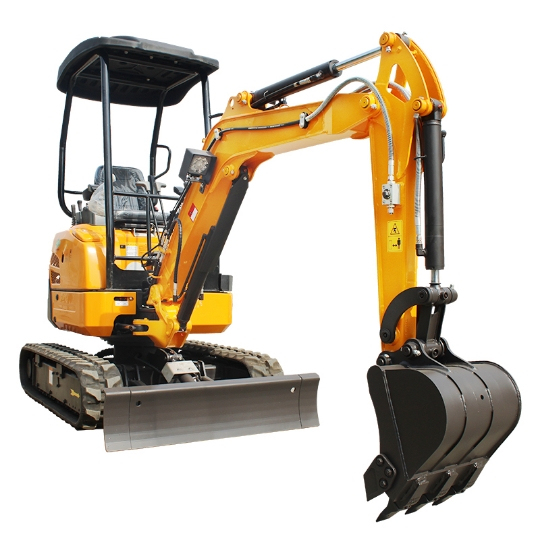

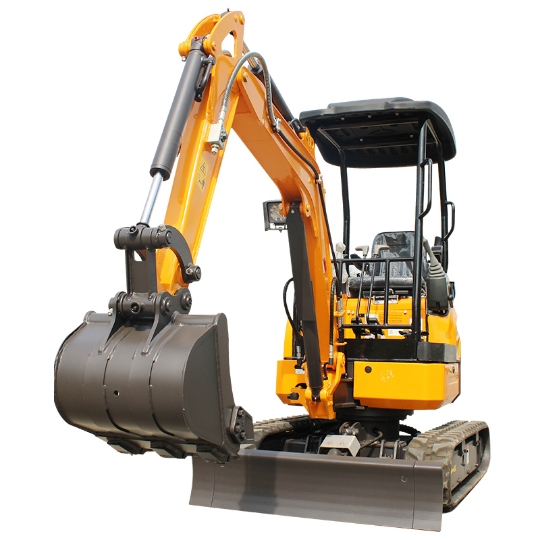

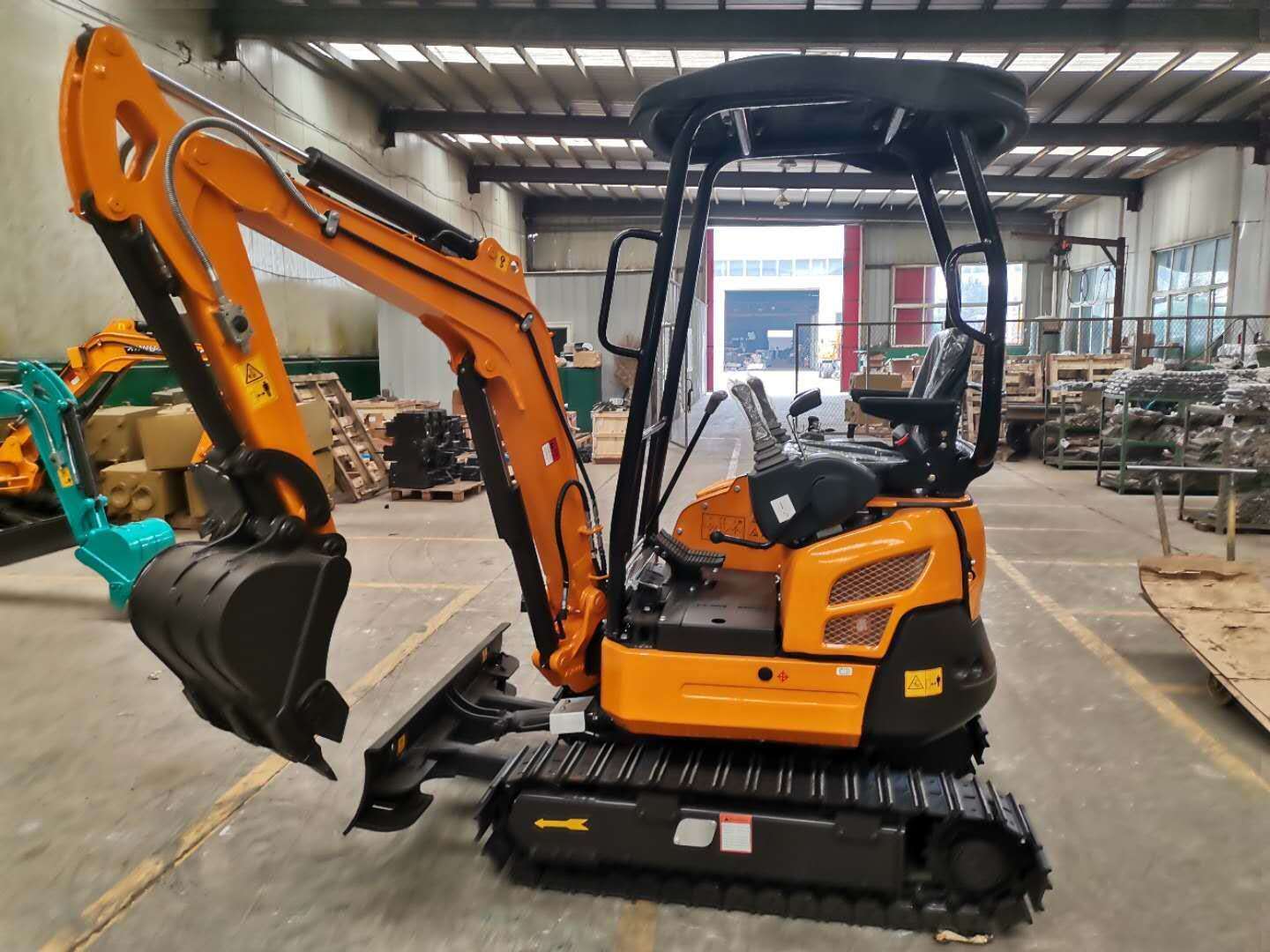

XN20 |
|
Operating Weight |
2000kg |
|
Digging bucket capacity |
0.05cbm/500kg |
|
Digging bucket width |
420mm, can add narrow bucket is 200mm |
|
Engine |
Yanmar (3TNV70-S) |
|
Rated power |
10kw/2200/r/min |
|
Displacement |
0.854L |
|
Bore stroke |
three cylinder, water cool |
|
Main pump |
KDK |
|
Pump flow |
23.3L/Min |
|
Hydraulic oil tank capacity |
15.3L |
|
Engine oil tank capacity |
2.8(1.3)L |
|
Diesel tank capacity |
19 L |
|
Valve |
BEIFANG |
|
Displacement |
6.8ml/r |
|
Swing motor |
EATON |
|
Traveling motor |
DONGHYUAN |
|
MAIN DEMENSIONS |
|
|
Overall dimension( LxWxH) |
3400x1040x2350mm |
|
Total length of track on land |
1590mm |
|
Platform ground clearance |
473 mm |
|
Platform back turning radius |
740 mm |
|
Chassis width |
990 mm(retract)/ 1240mm(extended) |
|
Track width |
230 mm |
|
Chassis ground clearance |
460 mm |
|
Bucket digging force |
13.5kn |
|
Arm digging force |
10.1kn |
|
Theoretical Maximum traction |
17.5Kn |
|
Ground specific pressure |
32.8KPA |
|
Track height |
360 mm |
|
Swing boom to left |
390 mm |
|
Swing boom to right |
510 mm |
|
OPERATING RANGE |
|
|
Max. Digging depth |
2150 mm |
|
Max. Vertical digging depth |
1740 mm |
|
Max. Digging height |
3275 mm |
|
Max. Dumping height |
2310 mm |
|
Max. Digging radius on ground |
3610 mm |
|
Min. Rotation radius |
1580 mm |
|
Max. Upgrade height of bulldozer blade |
275 mm |
|
Max. Digging depth of bulldozer blade |
180 mm |
