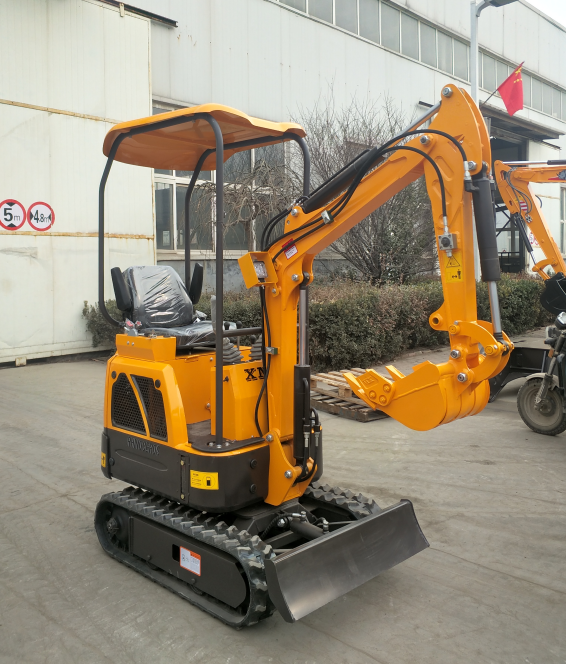

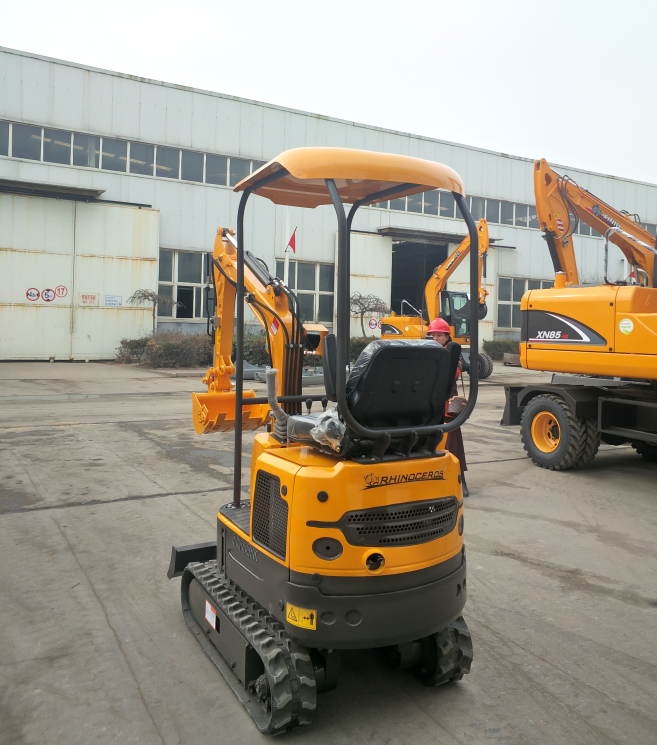

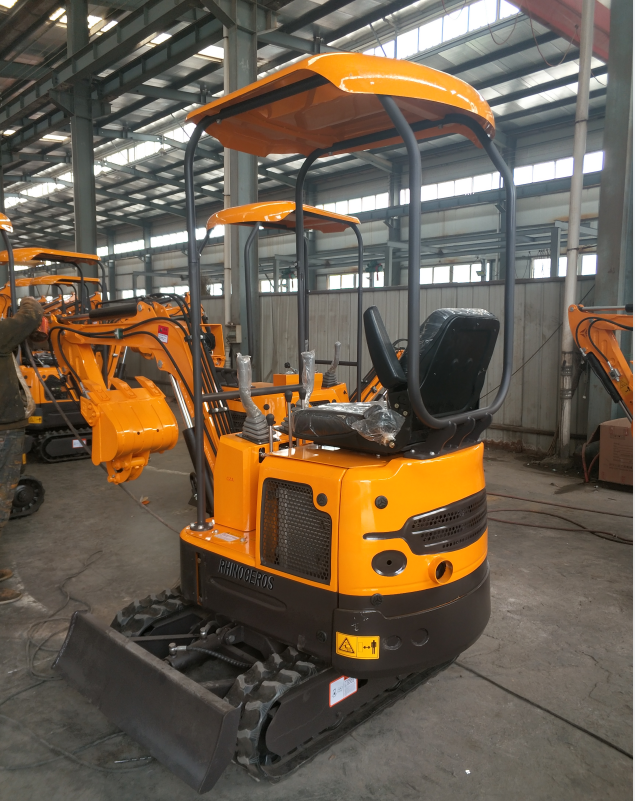

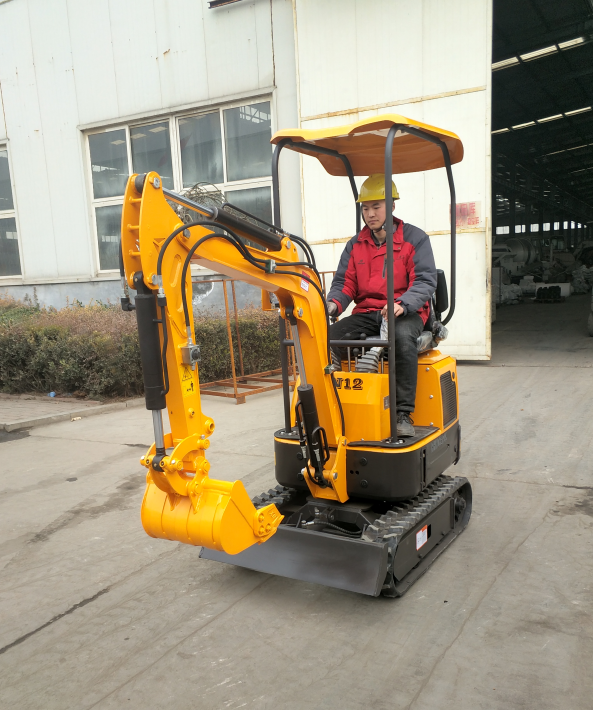

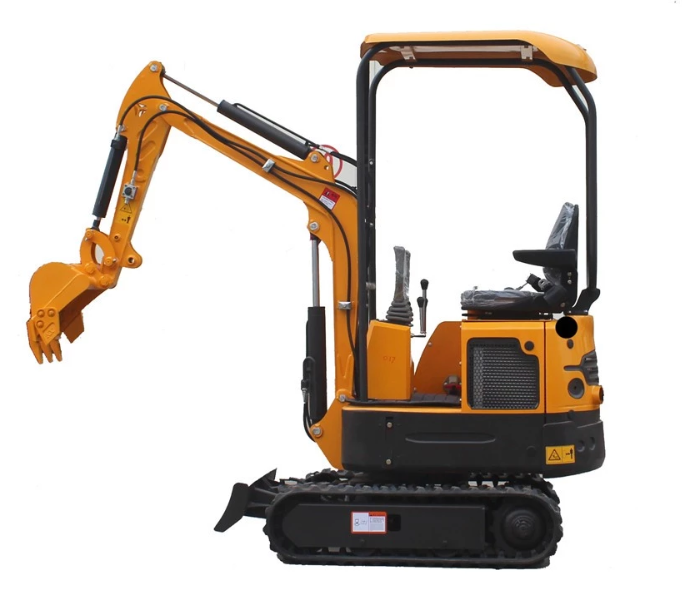

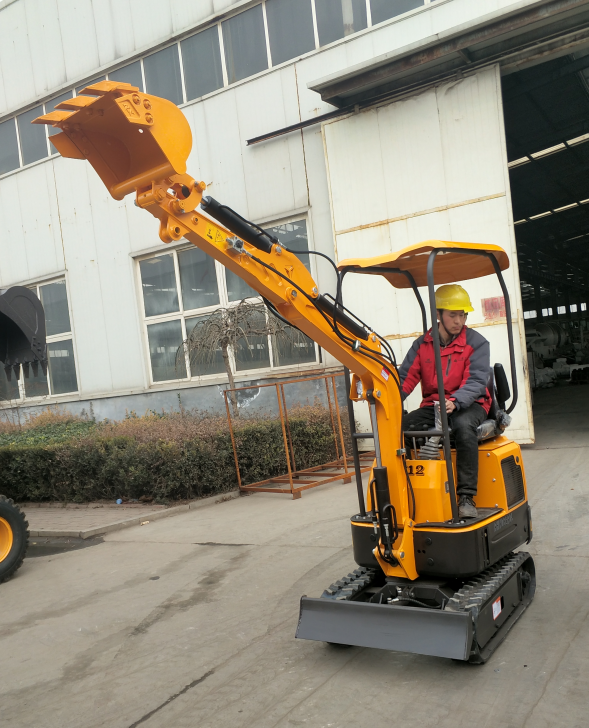

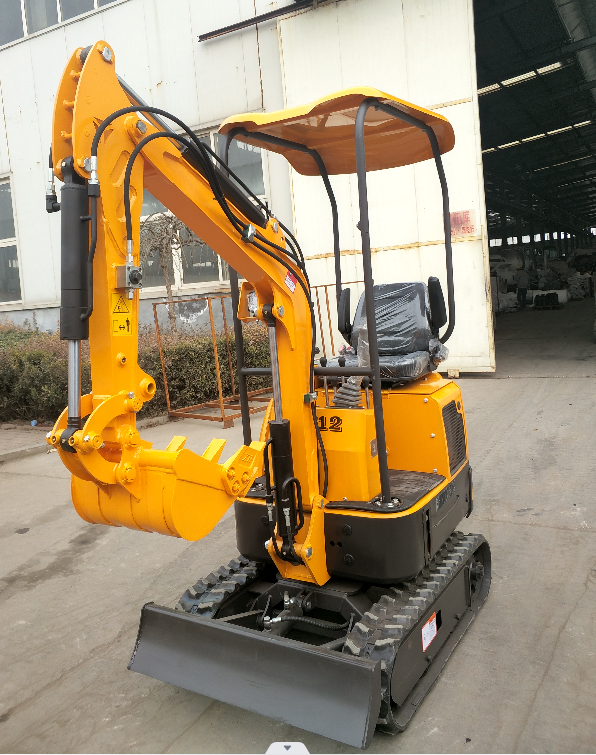

MINI EXCAVATOR XN12 1.1ton small crawler excavator prices

No.303
This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
  • MINI EXCAVATOR XN12 1.1ton small crawler excavator prices
  • MINI EXCAVATOR XN12 1.1ton small crawler excavator prices
  • MINI EXCAVATOR XN12 1.1ton small crawler excavator prices
  • MINI EXCAVATOR XN12 1.1ton small crawler excavator prices
  • MINI EXCAVATOR XN12 1.1ton small crawler excavator prices
  • MINI EXCAVATOR XN12 1.1ton small crawler excavator prices
  • MINI EXCAVATOR XN12 1.1ton small crawler excavator prices
  • MINI EXCAVATOR XN12 1.1ton small crawler excavator prices
  • MINI EXCAVATOR XN12 1.1ton small crawler excavator prices

SPECIFICATION

Product Application:

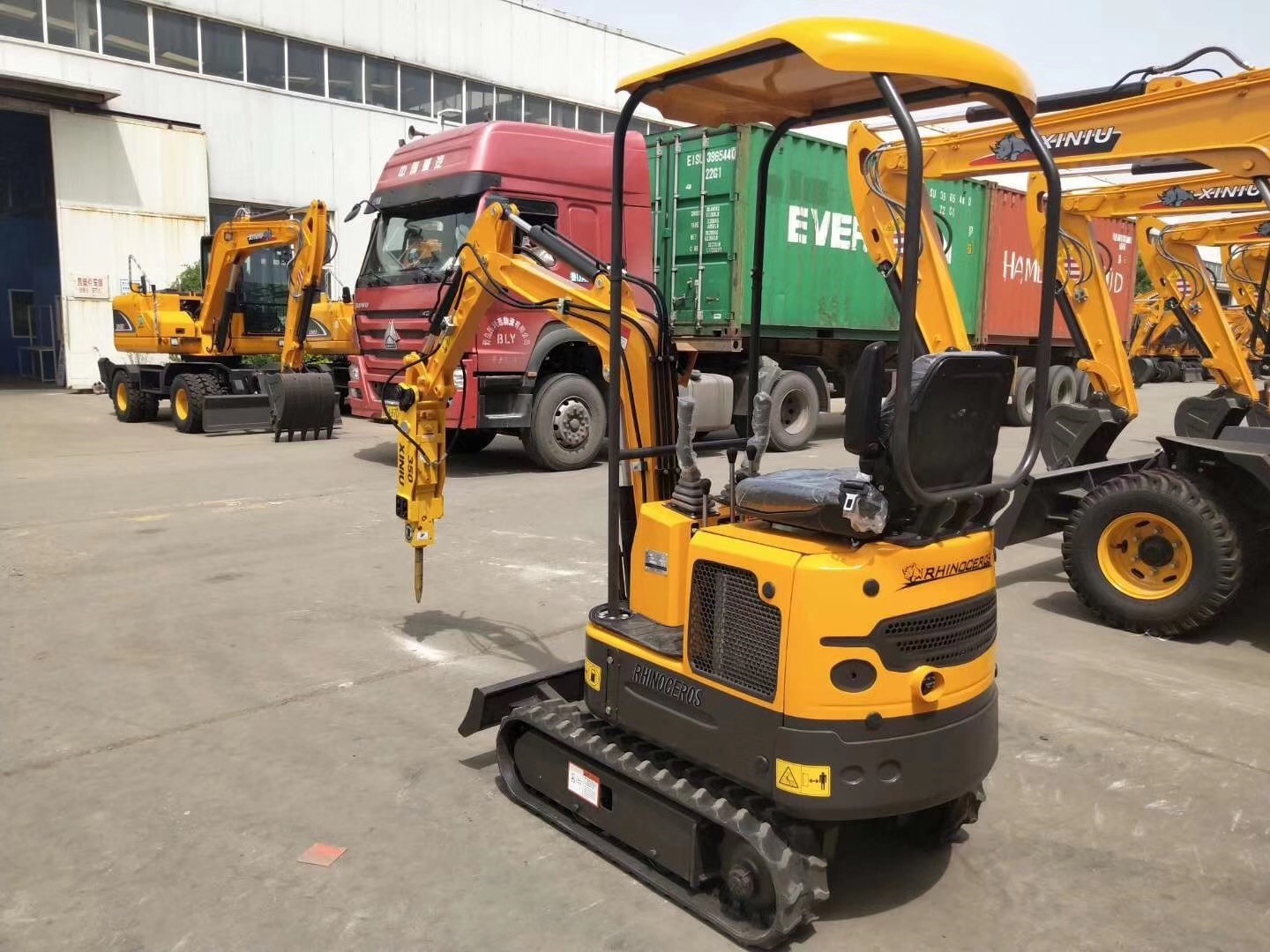

This product with beautiful appearance,high configuration,superior performance,low fuel consumption,wide operating range. It is suitable for losingsoil of vegetable greenhouse,campus greening of municipal departments,digging the hole for tree planting of Fruit-land Nurseries concrete pavementcrushing,sand-gravel material mixing, construction work in the narrow place and so on. Use the quick hitch can add the attachment tools like auger,hydraulichammer,loading bucket,gripper and so on. It can reduce maintenance and operating costs liberate the workforce .improve the mechanization,Iowinvestment,high return.

Specfition:

Model

XN12

Operating Weight

1080 kg

bucket capacity

0.02m³

Working device form

backhoe



engine

Model

Yanmar 3TNV70

Rated power

10.3kw

Model

Kubota  D722-EF11

Rated power

10.2kw/2500rpm

Displacement

0.854L

Maximum torque

51.9N.m/1600 r/min

speed

Max.travel speed

1.5km/h

swing speed

11rpm

Max. Gradeability

30°

Ground specific pressure

32.8kgf/cm2

Track material

Rubber

Type of track tension device

screw adjustment

Hydraulic and liquid capacity

Pump type

Gear pump

Working pressure

16Mpa

Flow rate

18L/min

Hydraulic oil tank capacity

15L

Engine fuel tank capacity

1.8L

Fuel tank capacity

11L

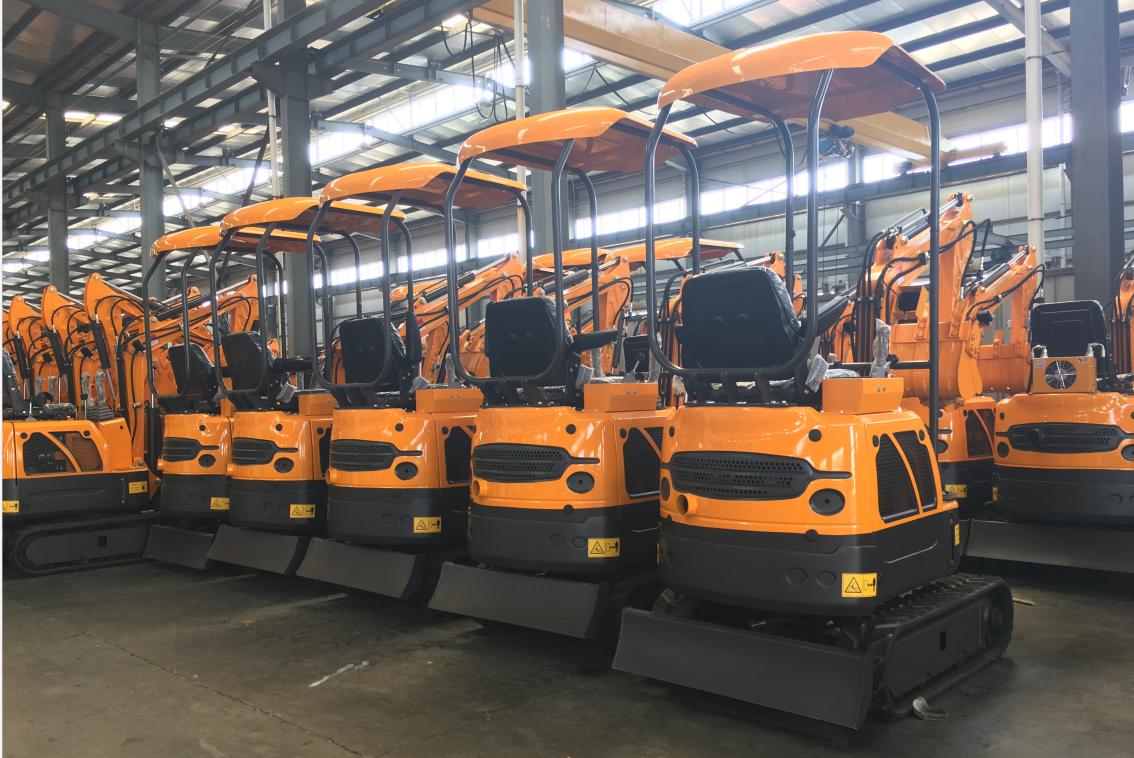

Packing: 6 units in a 20GP container; 13 units in a 40GP container
