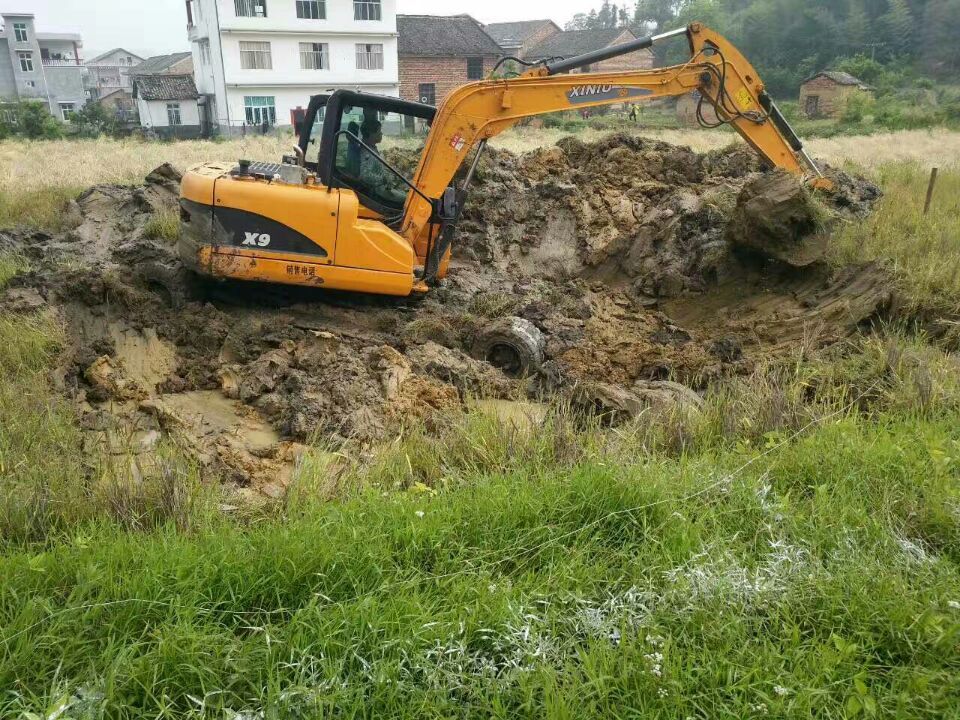

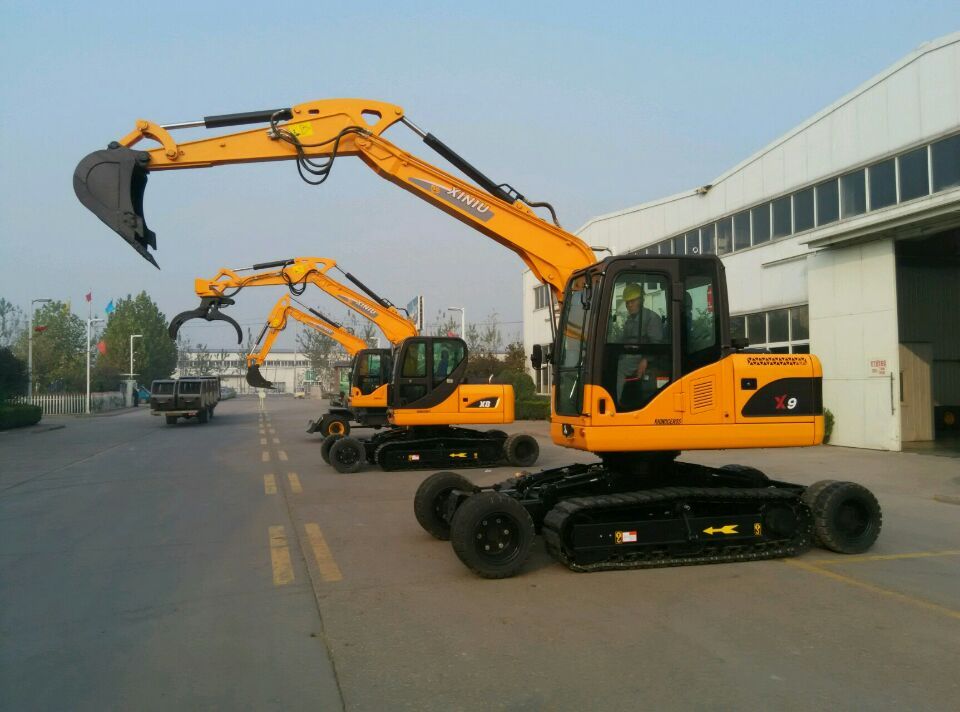

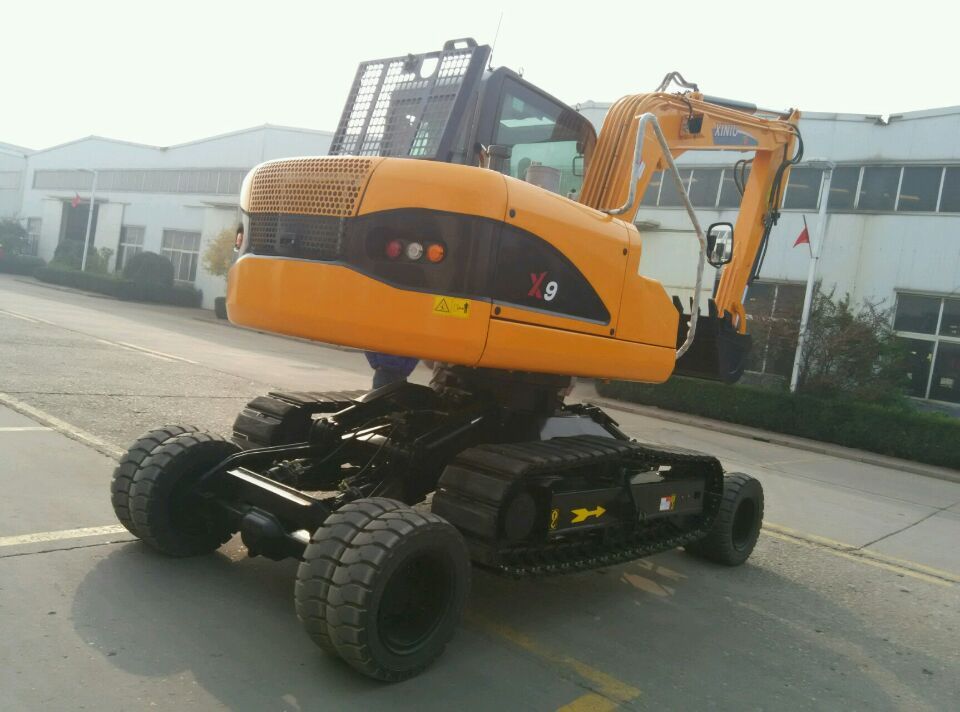

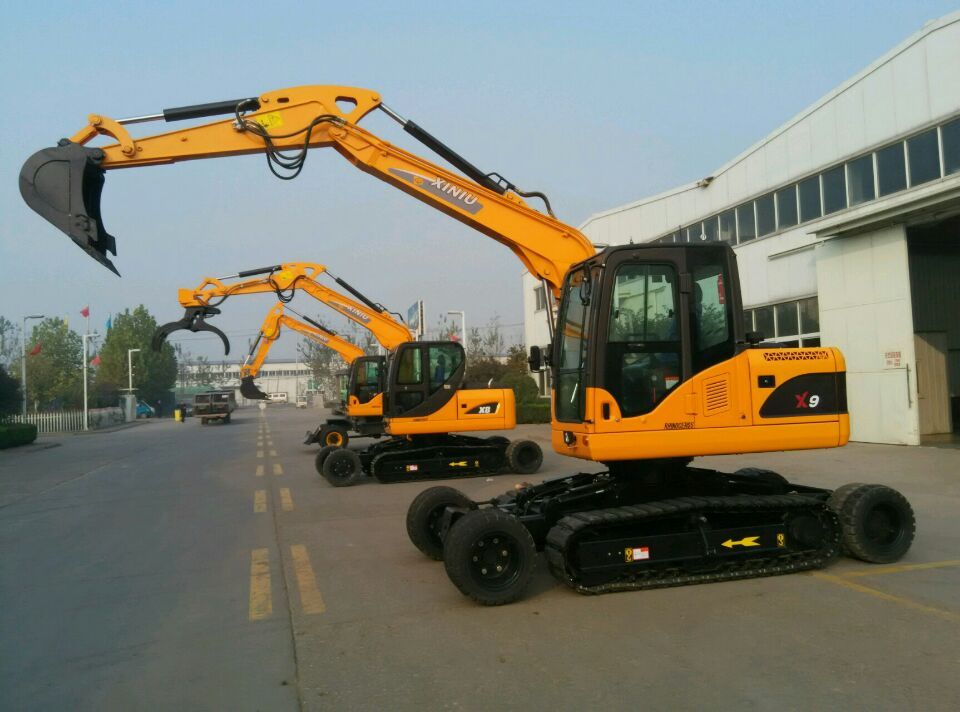

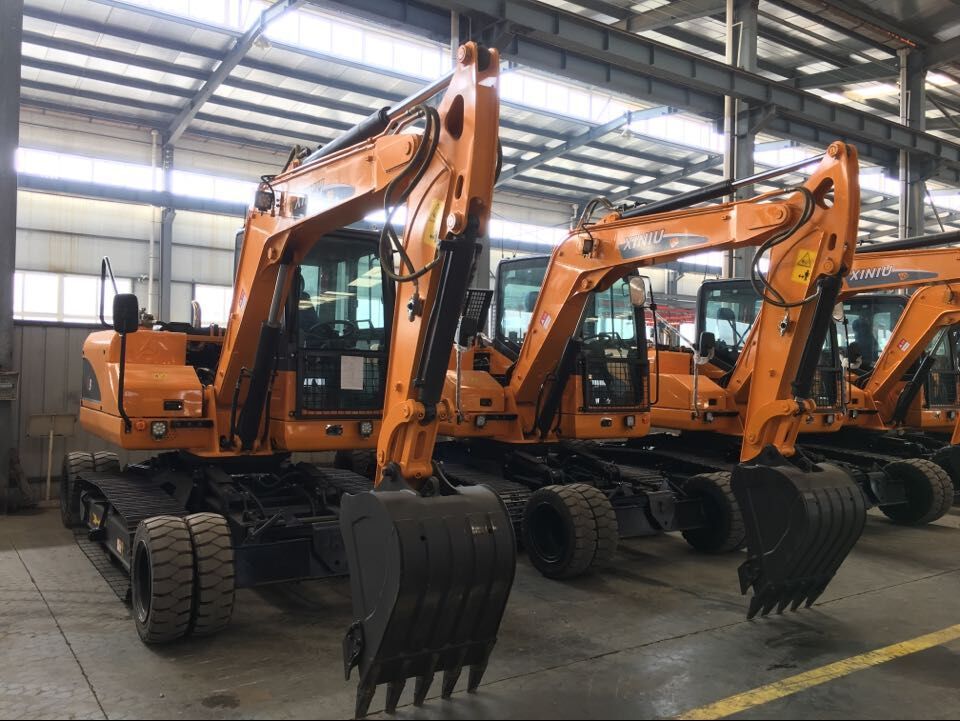

Small Wheel-Crawler Excavator X9 9ton with CE ISO

No.308
Wheel-Crawler excavator is totally invented by our company, it is our patent product; the transportation cost can be highly reduced with this design. High transportation efficiency, it is convenient to operate and easy to switch the crawler and wheels. 9ton, GERMANY REXROTH pump, USA EATON swing motor, traveling motor, South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB, 0.32m3 bucket, Overall dimension: 6570x2120x2982 mm, Running on wheels, Working on track.
  • Small Wheel-Crawler Excavator X9 9ton with CE ISO
  • Small Wheel-Crawler Excavator X9 9ton with CE ISO
  • Small Wheel-Crawler Excavator X9 9ton with CE ISO
  • Small Wheel-Crawler Excavator X9 9ton with CE ISO
  • Small Wheel-Crawler Excavator X9 9ton with CE ISO
  • Small Wheel-Crawler Excavator X9 9ton with CE ISO
  • Small Wheel-Crawler Excavator X9 9ton with CE ISO
  • Small Wheel-Crawler Excavator X9 9ton with CE ISO
  • Small Wheel-Crawler Excavator X9 9ton with CE ISO

SPECIFICATION

Model

X9

Operating Weight

9 t

Overall dimension

6570x2120x2982 mm

Bucket capacity

0.32

Engine type

YANMAR(4TNV94L-BVBKC)

Rated power/speed

33.7KW

No. of cylinders/type

4 cylinders in line

Bore and stroke

94*105

Voltage of start motor

12V

Starting type

ELECTRIC

Hydraulic main pump

GERMANY REXROTH

Hydraulic system pressure

25MPa

Hydraulic system flow

132L/Min

Valve

South Korea SUNJIN

Swing motor

USA EATON

Max swing speed

12r/min

Travel motor

USA EATON

Max travel speed

30km/h

Axle and Transmission

YTO

Gear

Forward 1 2 3 4  ; Reverse 1 2

Bucket Digging Force

56Kn

Arm Digging Force

36Kn

Grade ability

35 degree

Working fuel consumption

6.10L/h

Diesel oil tank capacity

150L

Engine oil tank capacity

12L

Hydraulic oil tank capacity

175L

Cooling fluid tank capacity

18L

Shipping Length

6570mm

Shipping Height

2982mm

Overall Width

2120mm

Boom length

3600mm

Arm length

2000mm

Radius,Swing Center to Rear End

/

Min swing radius

2617mm

Tyre Type

28x9-15

Wheelbase

3500mm

Wheel Tread

2050mm

Steering Width

2150mm

Ground clearance

300mm

Blade height

/

Blade Dimension

/

Overall width with outrigger extended

2890mm

Drive Method 2WD/4WD

Wheel (Mechanical 2WD) / Crawler (Hydraulic)

light

All LED lights

Max Digging Height

7130mm

Max Dumping Height

5220mm

Max Digging Depth

3772mm

Max Digging Radius

6880mm

Standard machine with A/C

YES

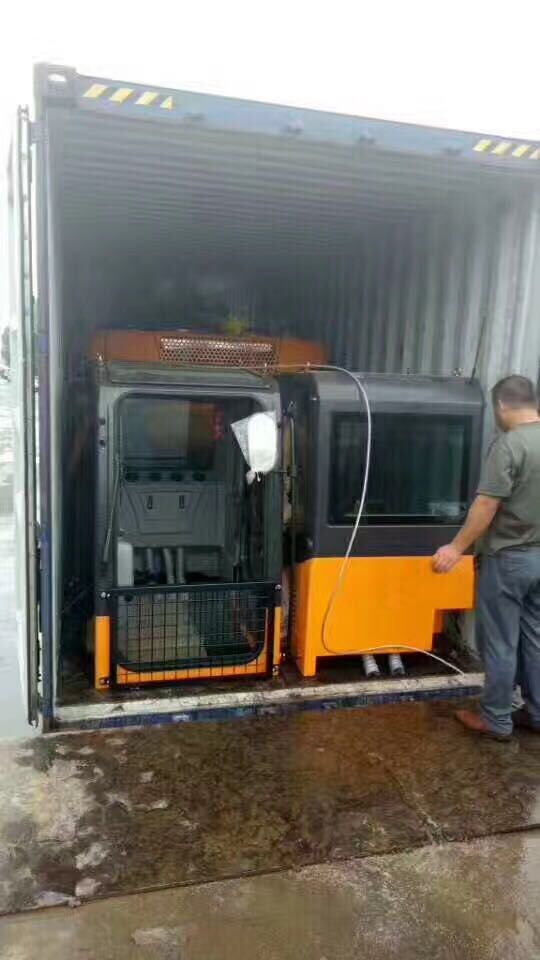

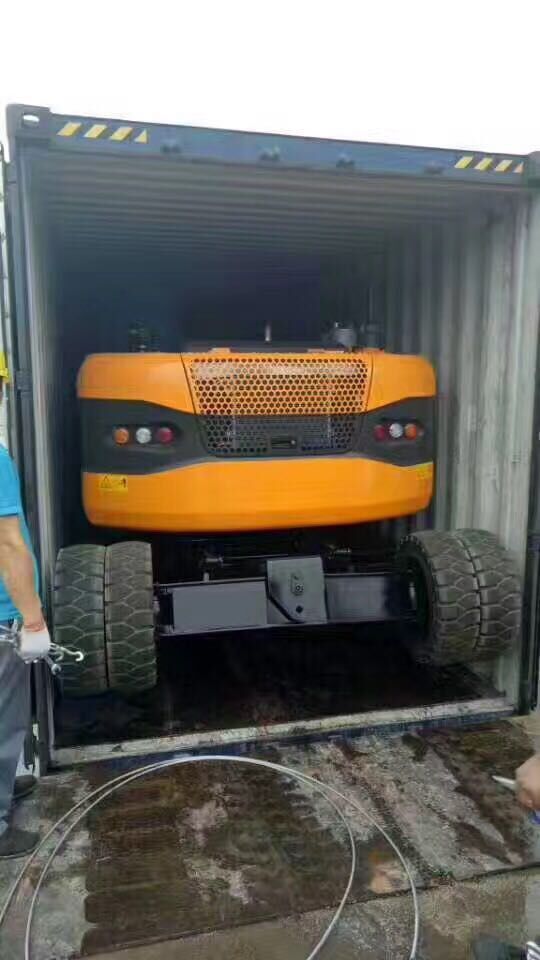

Packing way

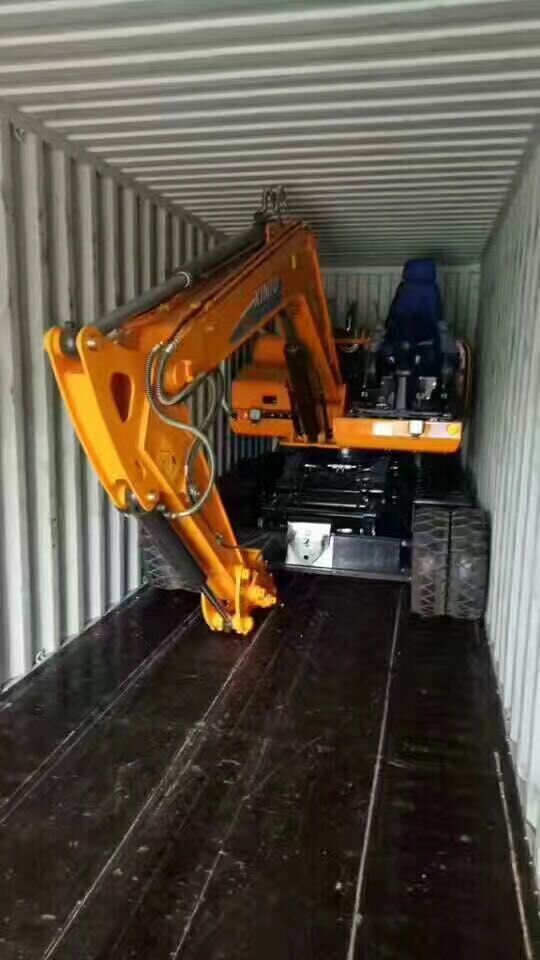

one 40ft load two units

Passed certificates

CE  ISO
