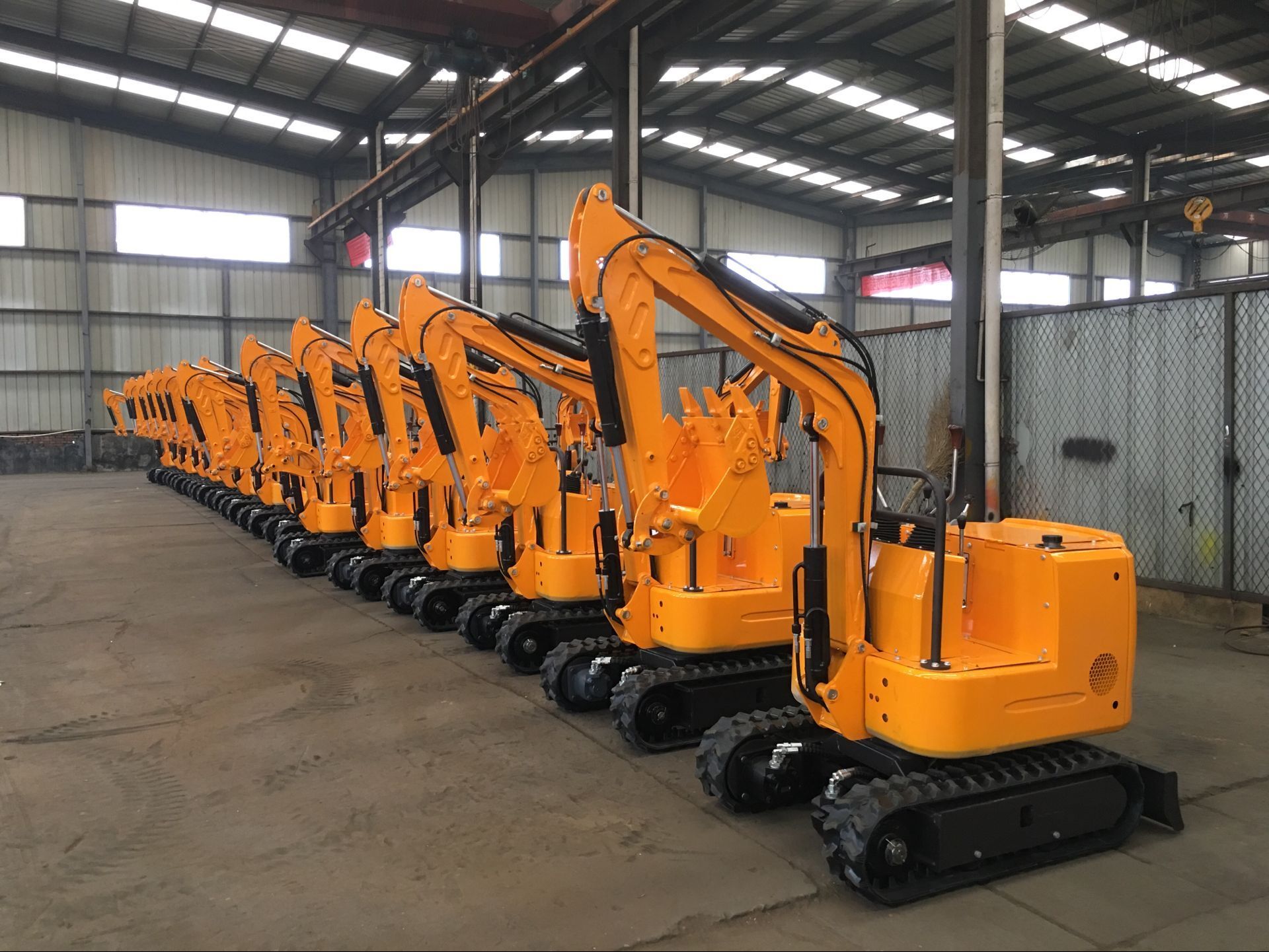

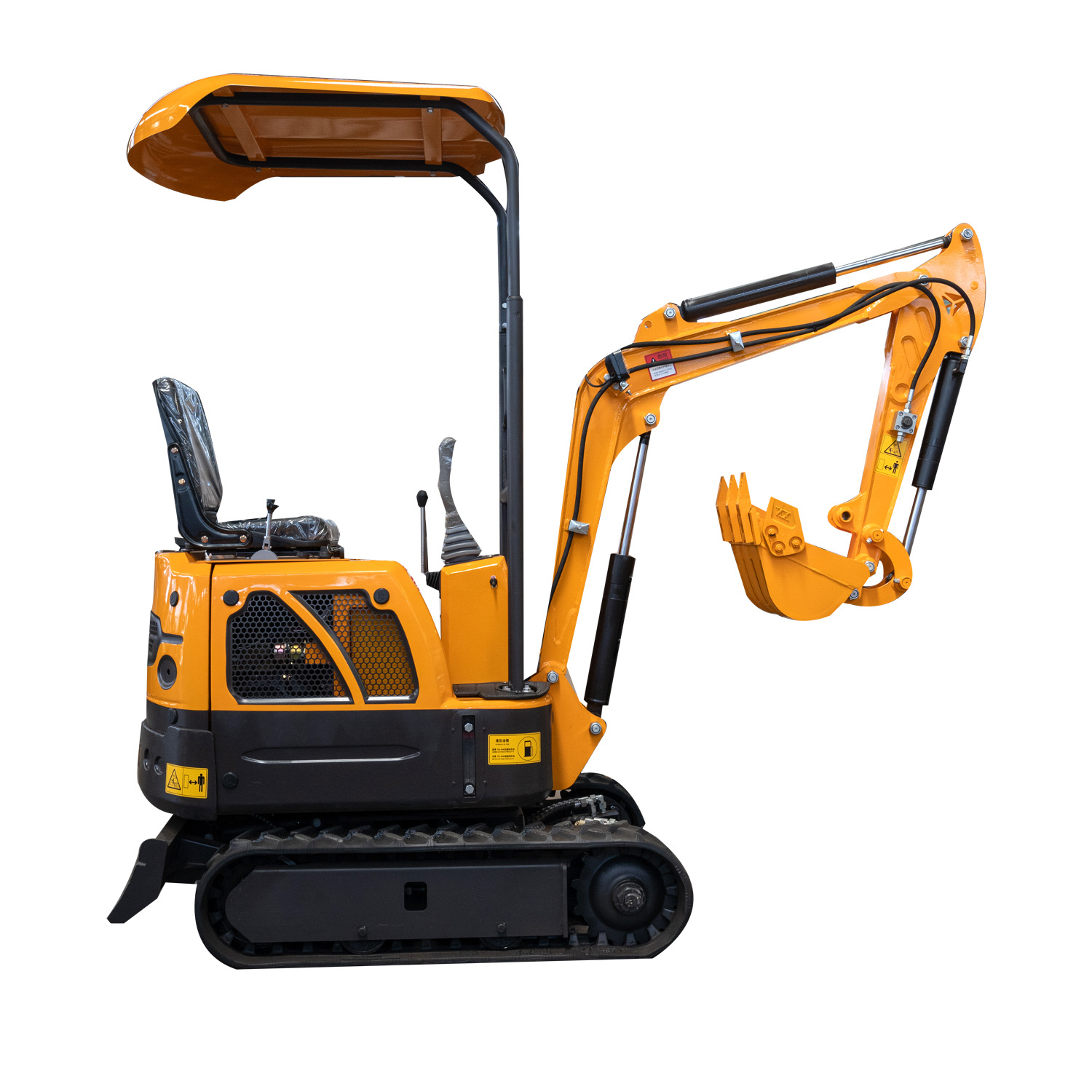

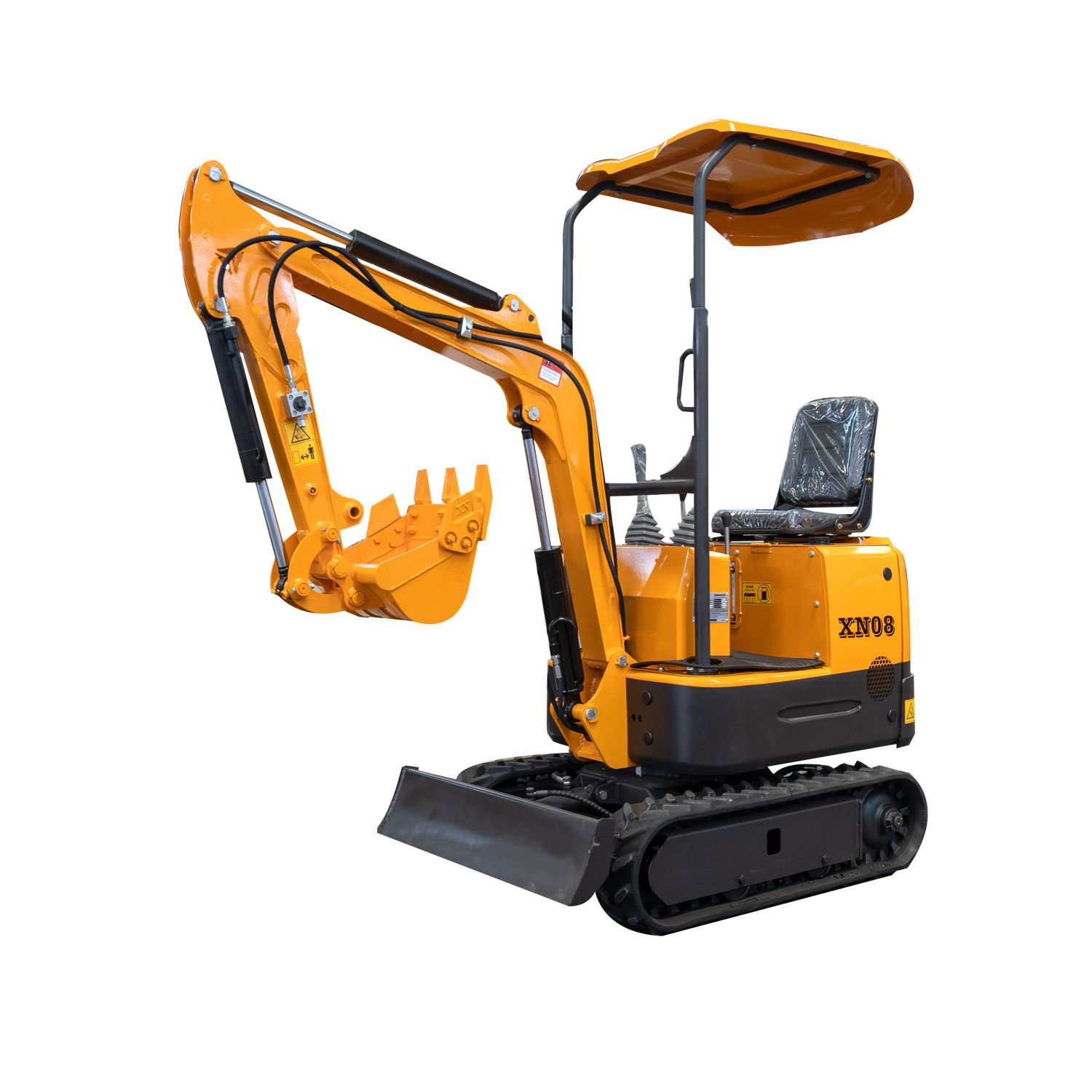

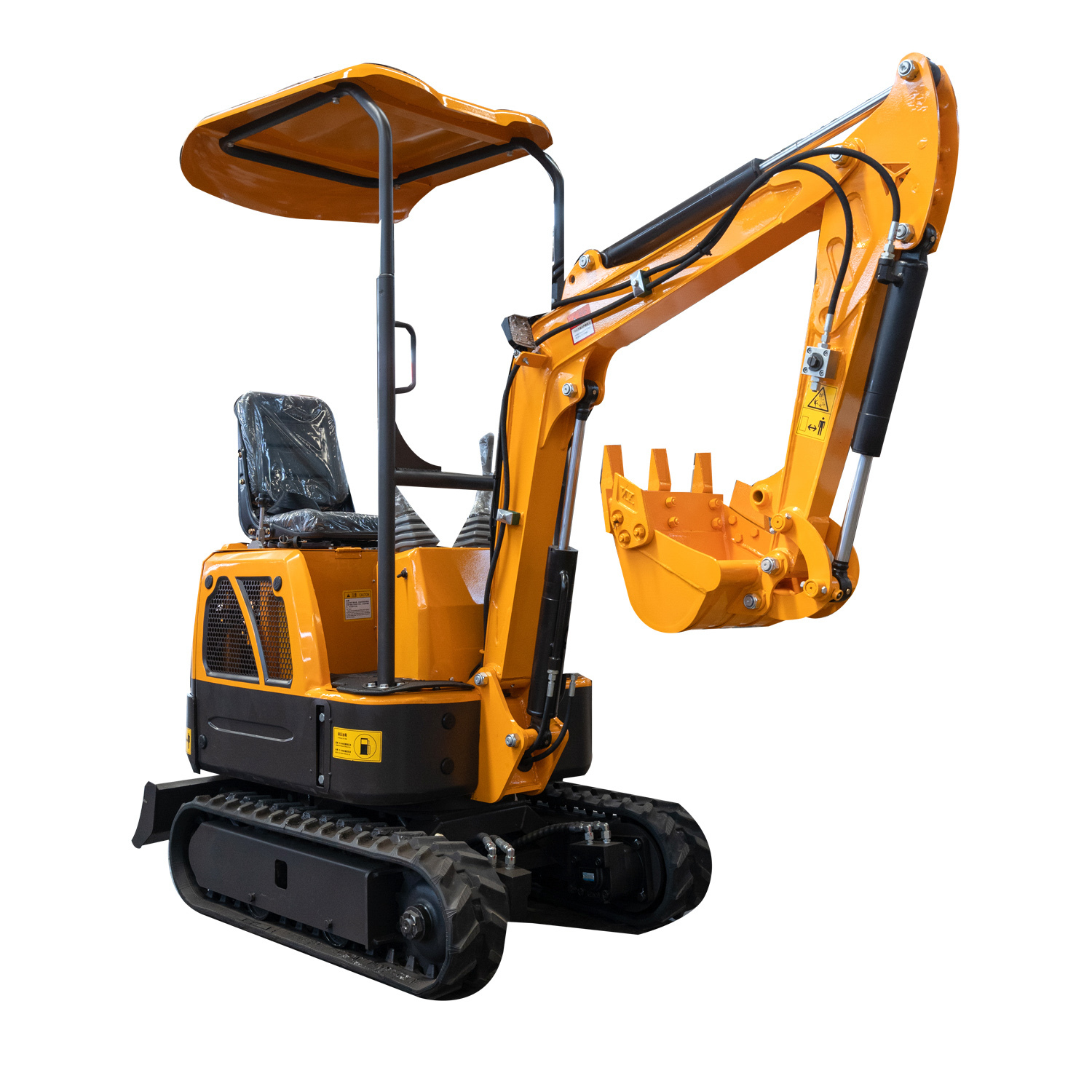

Mini Crawler Excavator XN08 for small works 0.8T

No.301
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
  • Mini Crawler Excavator XN08 for small works 800KG
  • Mini Crawler Excavator XN08 for small works 800KG
  • Mini Crawler Excavator XN08 for small works 800KG
  • Mini Crawler Excavator XN08 for small works 800KG
  • Mini Crawler Excavator XN08 for small works 800KG

SPECIFICATION

Model

XN08

Brand

QINGONG

Operating Weight

800kg

Digging bucket capacity

0.025cbm/100kg

Bucket width

340mm

Engine

KOOP

Rated power

8.6 kw/1800r/min

Displacement

0.211 L

Bore stroke

70x55

Main pump

CBK-F6.8

Displacement

6.8ml/r

Swing motor

SJ-TECH (MP-1-160)

Traveling motor

KERSEN (OMS-2450)

Travel speed

1.5km/h

MAIN DEMENSIONS

Overall dimension( LxWxH)

2770x896x1490 mm

Wheelbase

910 mm

Total length of track

1230mm

Platform ground clearance

380 mm

Platform back turning radius

784 mm

Chassis width

896 mm

Track width

130 mm

Chassis ground clearance

132 mm

Track height

320 mm

OPERATING RANGE

Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm



Main Features:

1.Changchai/Koop/Yanmar,7.5 /7.6 /10 kw,single cylinder,air-cooled,national II emission standard.

2.0.8 ton ,0.02cbm bucket 1.5km/h,1877x896x1990 mm.
3.Max. Digging height:2365mm, Max. Digging depth:1500mm.
4.It also can be with,auger gripper,ripper,rake ,500mm Leveling bucket and 200mm Narrow bucket if you'd like.

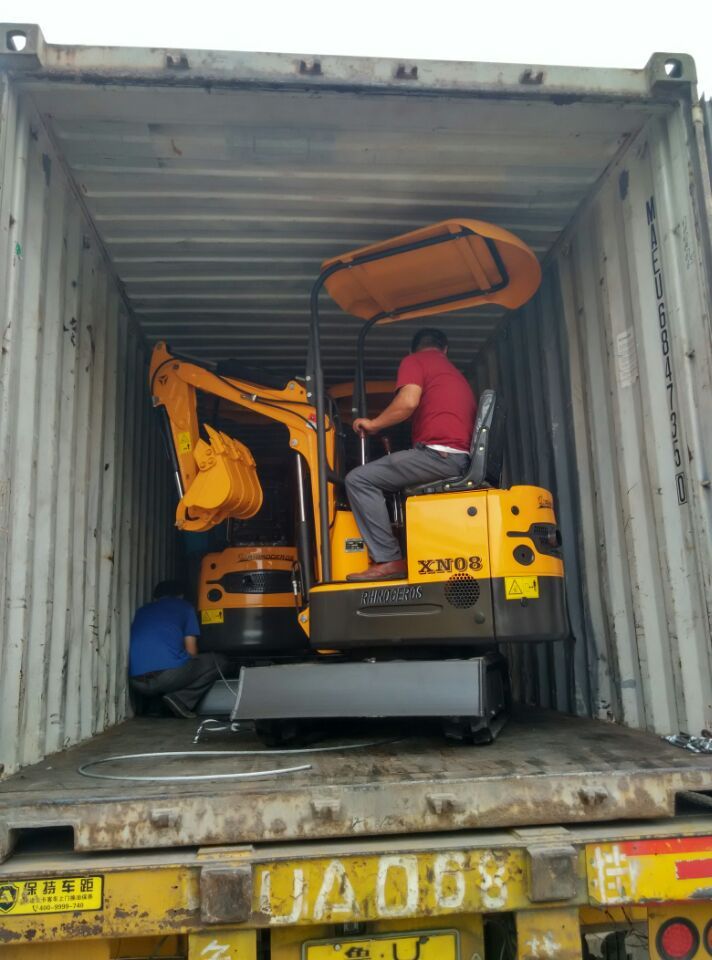

PACKING:
8 units in a 20GP container
