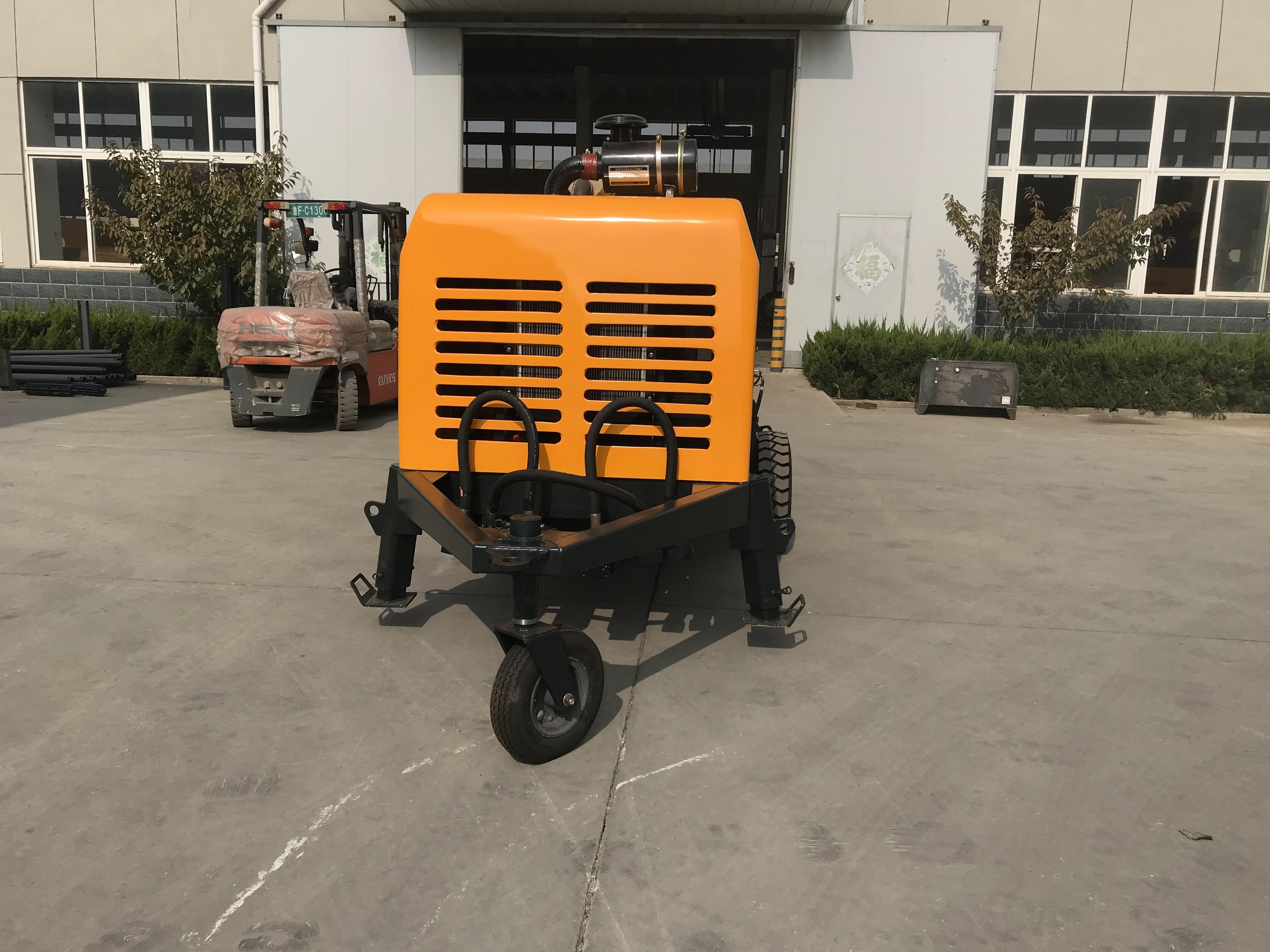

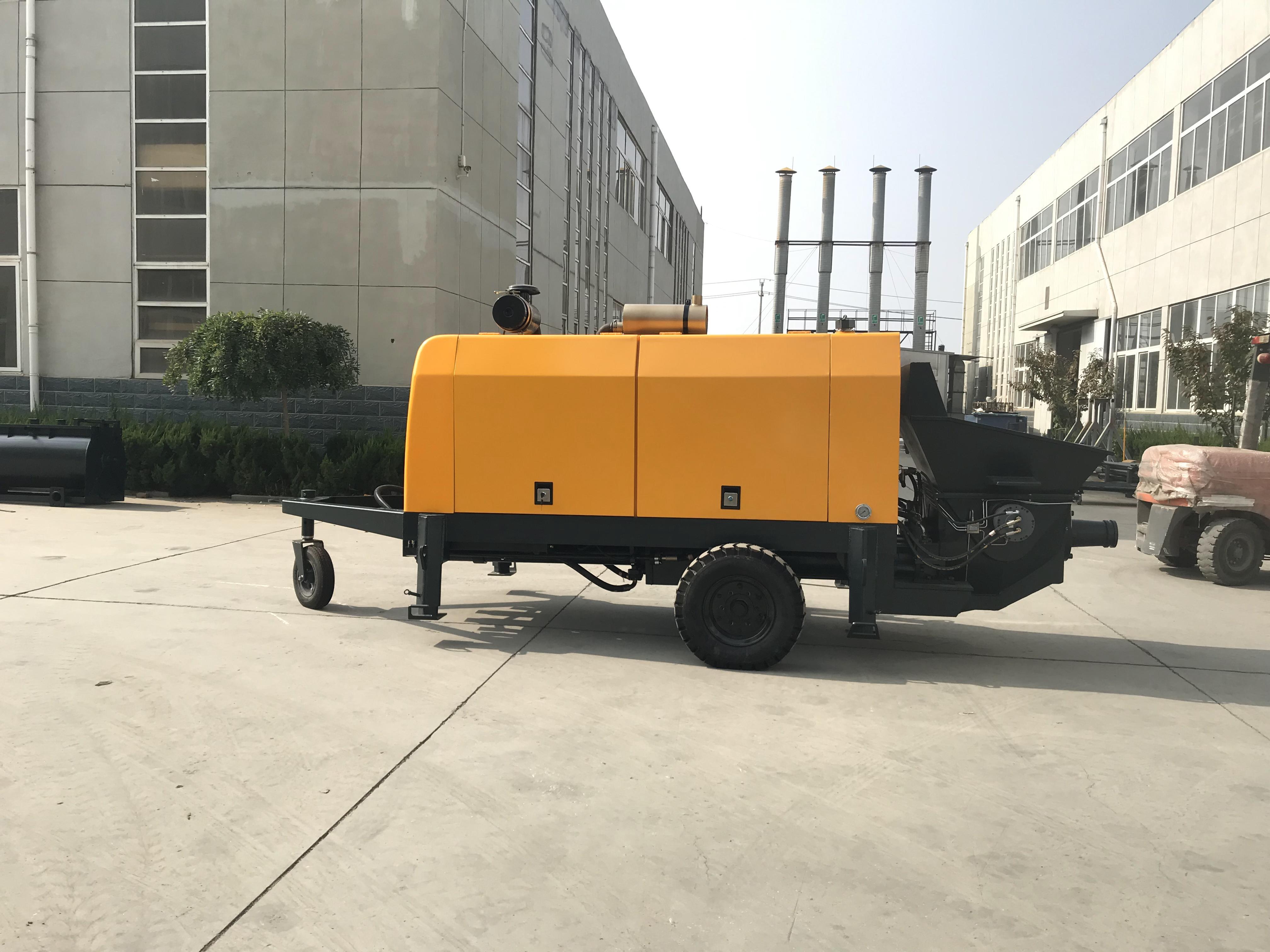

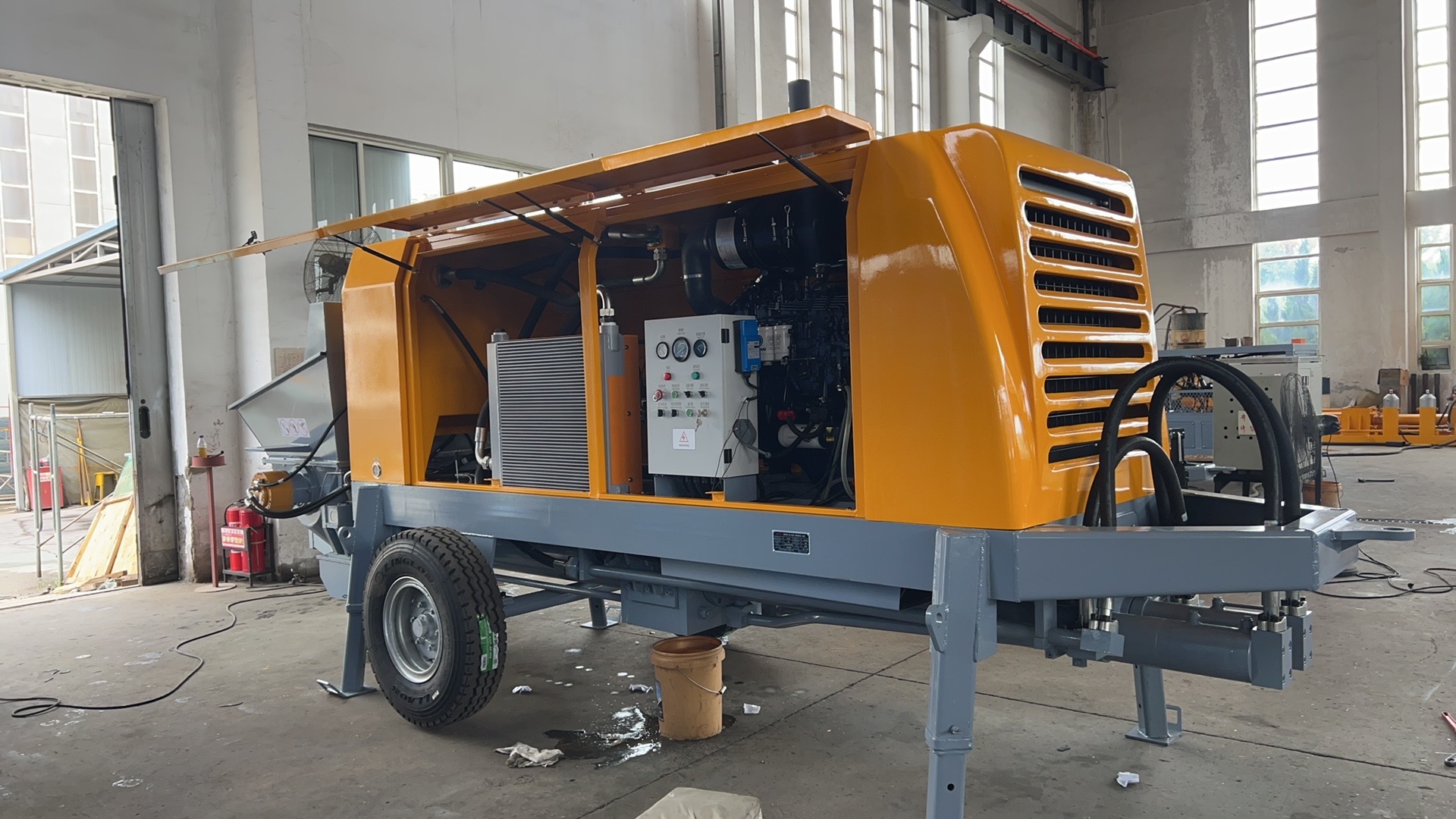

Items
|
Units |
Parameters |
||
HBTS40-13-60R |
||||
Performance and technical information |
Maximum theoretical concrete output (L./H.) |
m3/h |
42/23 |
|
Maximum concrete pumping pressure (H. /L.) |
MPa |
13/6.3 |
||
Maximum delivering distance (vertical / horizontal) |
m |
180/550 |
||
Concrete valve type |
|
S Valve |
||
Concrete cylinder diameter × stroke length |
mm |
Ф160×1000 |
||
Hopper capacity × hopper height |
L×mm |
400×1100 |
||
Maximum aggregate diameter |
mm |
Pebbles : 45 Gravel : 40 |
||
Outlet inner diameter |
mm |
Ф125 |
||
Delivering pipe inner diameter |
mm |
Ф100-Ф125 |
||
Lubrication system |
|
Automatic greaser |
||
High-low pressure conversion |
|
Yes |
||
Remote control |
|
Wireless |
||
Power system |
Diesel engine |
|
4105ZD |
|
Rated power |
KW |
60 |
||
Rated speed |
r/min |
1800 |
||
Rated fuel consumption |
L/h |
10.0 |
||
Hydraulic system |
Hydraulic system |
|
Open loop |
|
Pumping system pressure |
MPa |
32 |
||
Stirring system pressure |
MPa |
12 |
||
Hydraulic tank capacity |
L |
180 |
||
Dimensions |
Length × width × height |
mm |
4300×1670×1680 |
|
Main weight |
Kg |
3100 |
Model Parameters |
HBTS40-13-60R |
Hydraulic pump |
SAIDY (Shandong) |
Diesel engine |
(Weifang huadong ) |
Hydraulic valve group |
Northman (Taiwan) |
Pressure gauge |
Wuxi (Jiangsu) |
Hydraulic hose |
伯爵(bojue) optinoal Manuli (Italy) |
Seals |
Parker (USA) |
PLC unit PLC |
Omron (Japan) |
Proximity switch |
Schneider Electric (France) |
Button |
Schneider Electric (France) |
No. |
Item |
Model |
Unit |
Quantity |
1 |
High pressure hose |
Φ100*4m |
Piece |
1 |
2 |
Transparent spiral conveying hose |
Φ100*5m |
Piece |
1 |
3 |
Steel pipe |
Φ100*3m |
Piece |
27 |
4 |
Steel pipe |
Φ100*1.5m |
Piece |
2 |
5 |
Reducer |
Φ125–Φ100 |
Piece |
1 |
6 | Pipe elbow |
Φ100-90° |
Piece |
4 |
7 |
Pipe elbow |
Φ100-45° |
Piece |
2 |
8 | Pipe clame |
S100 |
Piece |
40 |
9 |
Pipe clamp |
S125 |
Piece |
2 |
10 |
Cleaning ball |
Φ100 |
Piece |
2 |
11 |
Sealing ring |
HBTS40-13-60R |
Set |
1 |
12 |
Delivery piston |
Φ160 |
Piece |
2 |
13 |
Proximity switch |
ZLJ-A18-8ANA-Q |
Piece |
1 |
14 |
Remote control |
Wireless 220V |
Piece |
1 |
15 |
Tool box |
HBTS40-13-60R |
Piece |
1 |
16 |
Instruction |
HBTS40-13-60R |
Set |
1 |
17 |
Certificate |
HBTS40-13-60R |
Set |
1 |
