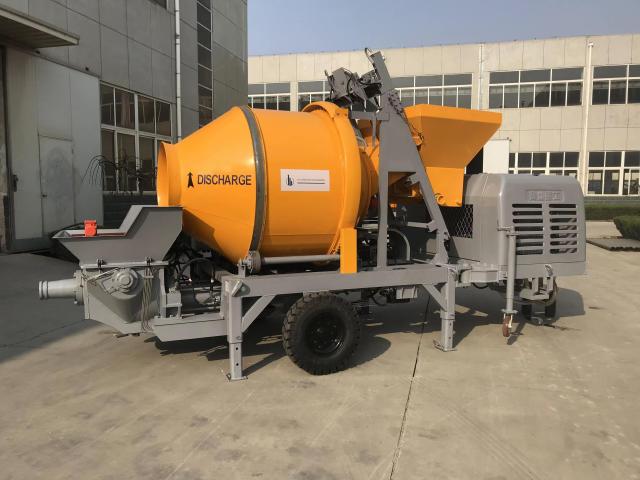

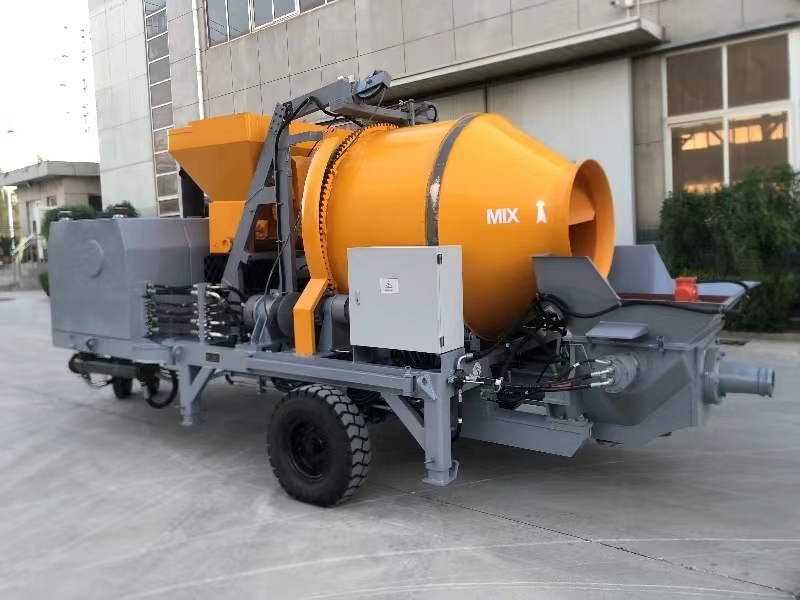

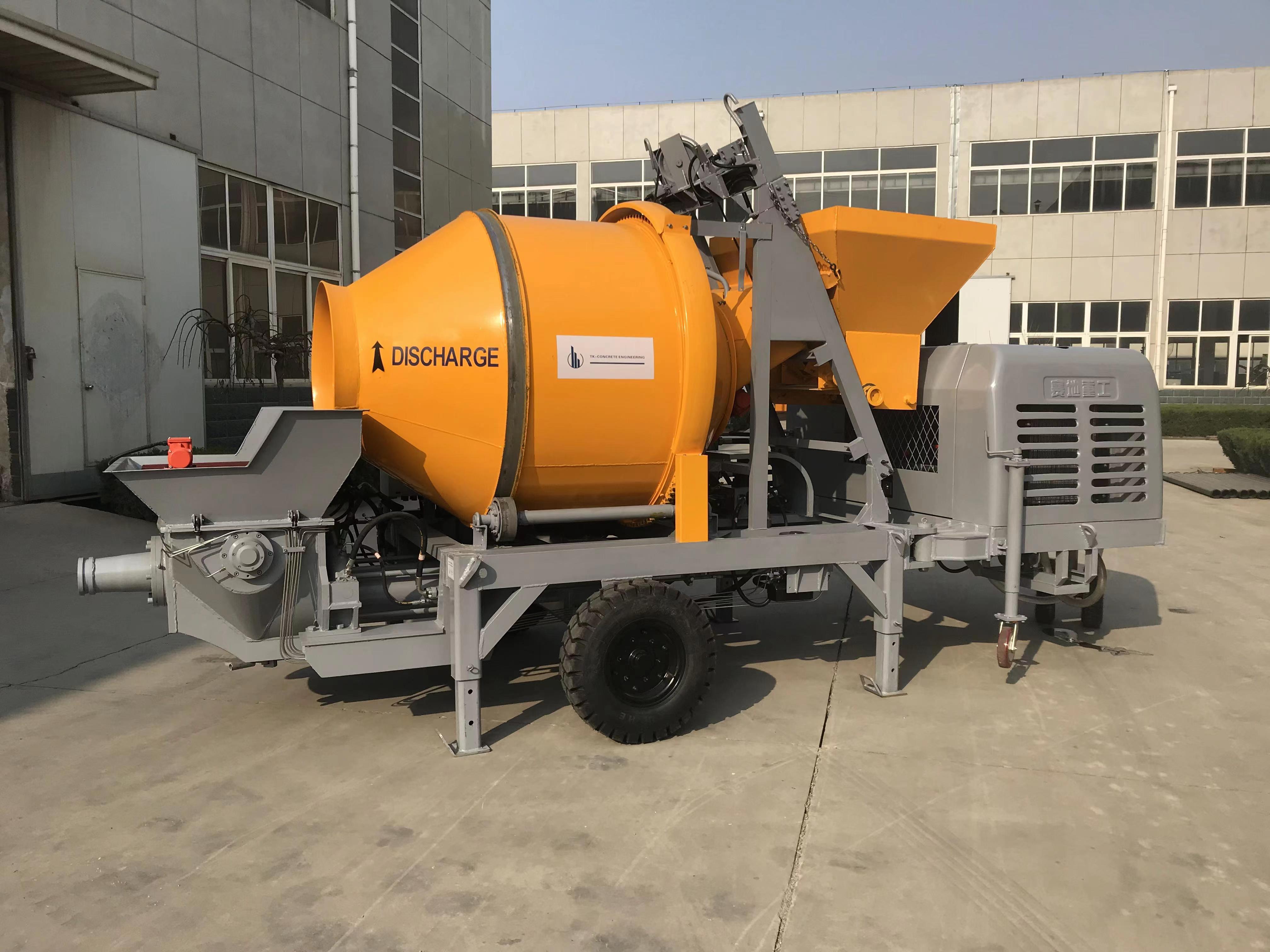

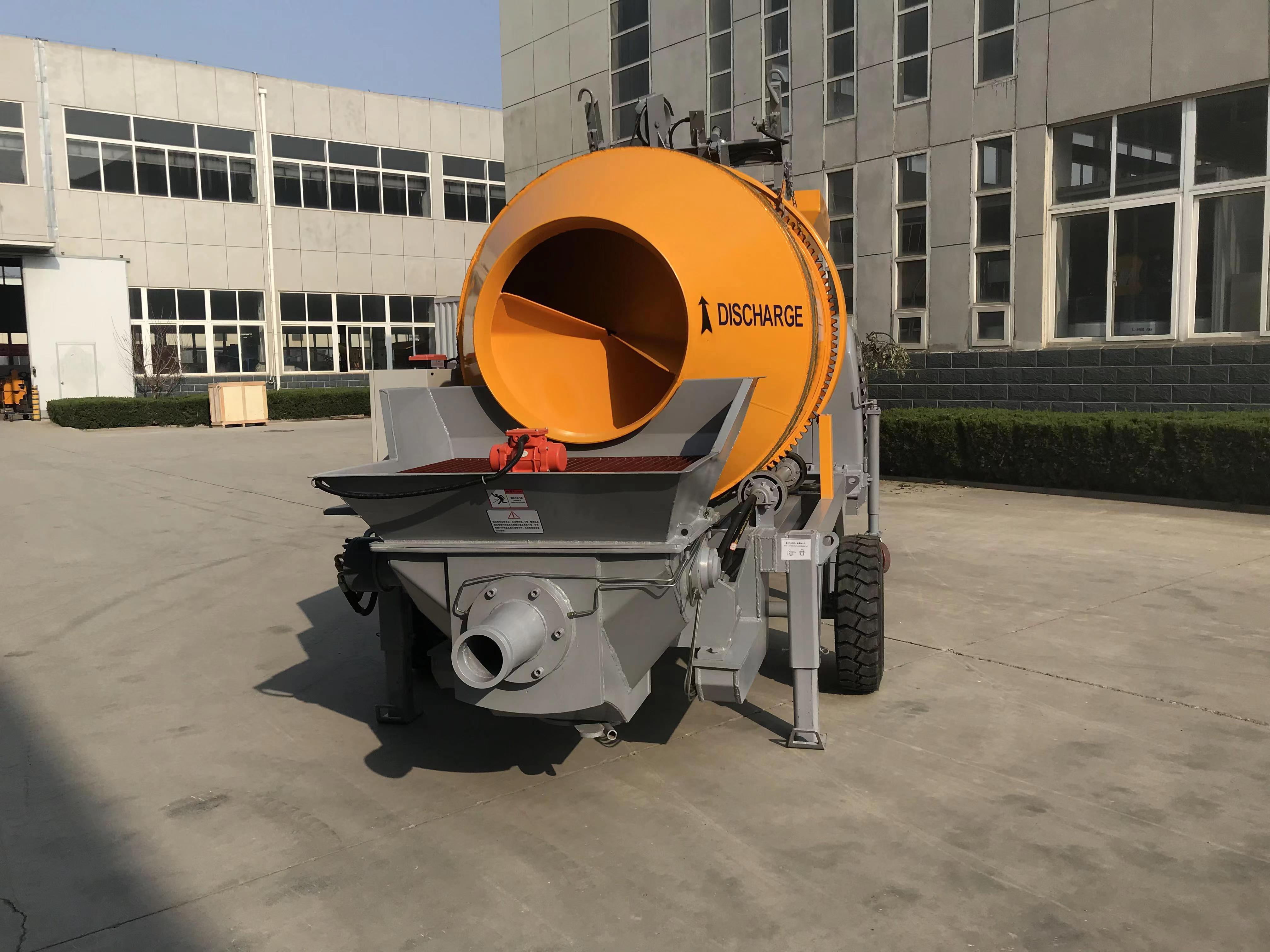

Technical Parameters
|
Items |
Units |
Parameters |
||
|
Whole performance of machine |
Maximum theoretical concrete output (L./H.) |
m3/h |
40 |
|
|
Maximum concrete pumping pressure (H. /L.) |
MPa |
13 |
||
|
Concrete valve type |
|
S Valve |
||
|
Concrete cylinder diameter × stroke length |
mm |
Ф160×1000 |
||
|
Hopper capacity×hopper height |
L×mm |
450×1000 |
||
|
Outlet inner diameter |
mm |
Ф125 |
||
|
Delivering pipe inner diameter |
mm |
Ф100 |
||
|
Maximum aggregate diameter |
mm |
Pebble: 35 Gravel: 40 |
||
|
Maximum delivering distance (vertical / horizontal) |
m |
100/300 |
||
|
Lubrication system |
|
Automatic electric lubrication |
||
|
High-low pressure conversion |
|
No |
||
|
Remote control |
|
Wireless remote control |
||
|
Power system |
Diesel engine |
|
R4105IZD (Weifang Huadong) or WP4.1D80E201 (Weichai) |
|
|
Rated power |
kW |
66KW (Weifang Huadong) 72KW ( Weichai) |
||
|
Rated speed |
RPM |
1800 |
||
|
Rated fuel consumption |
L/h |
12.0 |
||
|
Hydraulic system |
Hydraulic system |
|
Open circuit |
|
|
Displacement of main oil pump |
mL |
112 |
||
|
Pumping system pressure |
MPa |
31 |
||
|
Mixing system pressure |
MPa |
12 |
||
|
Hydraulic tank capacity |
L |
160 |
||
|
Other parameters |
|
Dimensions: length×width×height |
mm |
5200×2280×2900 |
|
Host weight |
kg |
4500 |
||
|
Total weight |
kg |
6000 |
||
Main Component Configuration
|
Models Parameters |
JBT40-11R |
|
Main oil pump |
SAIDY |
|
Diesel engine brand |
Weifang Huadong or Weichai |
|
Valve group |
Taiwan Northman
|
|
Pressure gauge |
Wuxi |
|
Hydraulic rubber pipe |
Italy Manuli |
|
Seal ring |
USA Parker |
|
Switch |
|
|
Contactor |
Zhengtai |
|
PLC Units |
Omron |
|
Intermediate relay |
Omron |
|
Proximity switch |
|
|
Button |
List of accessories (with 100m Φ100 delivery pipe)
|
No. |
Item |
Model |
Unit |
Quantity |
Picture |
|
1 |
High-pressure hose |
Φ100*4m |
Piece |
1 |
|
|
2 |
Transparent spiral conveying hose |
Φ100*5m |
Piece |
1 |
|
|
3 |
Steel Pipe |
Φ100*3m |
Piece |
27 |
|
|
4 |
Steel Pipe |
Φ100*1.5m |
Piece |
2 |
|
|
5 |
Reducer |
Φ125–Φ100 |
Piece |
1 |
|
|
6 |
Pipe elbow |
Φ100-90° |
Piece |
4 |
|
|
7 |
Pipe elbow |
Φ100-45° |
Piece |
2 |
|
|
8 |
Pipe clamp |
S100 |
Piece |
40 |
|
|
9 |
Pipe clamp |
S125 |
Piece |
2 |
|
|
10 |
Cleaning ball |
Φ100 |
Piece |
2 |
|
|
11 |
Sealing ring |
|
Set |
1 |
|
|
12 |
Delivery pistons |
Φ180 |
Piece |
2 |
|
|
13 |
Proximity switch |
ZLJ-A18-8ANA-Q |
Piece |
1 |
|
|
14 |
Remote control |
Wireless 220V |
Piece |
1 |
|
|
15 |
Toolbox |
|
Piece |
1 |
|
|
16 |
Manual & Certificate |
|
Set 份 |
1 |
