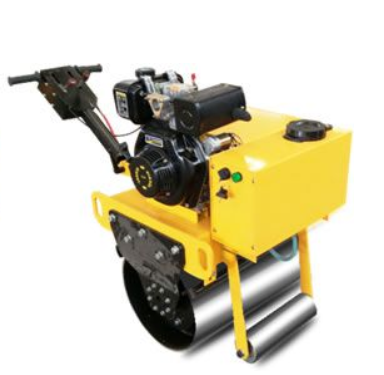

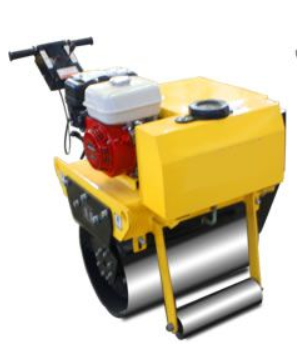

BM-30 Mini Single Drum Vibratory Hand-pushed Road Roller

No.2-12
1.Equipped with famous brand power, quality assurance, superior performance 2.Overall spraying, wide field of vision, beautiful and generous 3.Small working radius, work in narrow areas 4.Adopt domestic famous brand hydraulic pump, motor, high quality and high stability 5. Lengthened armrest, easy to turn, labor-saving
  • BM-30 Mini Single Drum Vibratory Hand-pushed Road Roller
  • BM-30 Mini Single Drum Vibratory Hand-pushed Road Roller

SPECIFICATION

Item No./Details
model BM-30 BM-30C
Engine brand HONDA GX160 CHANGFA CF170
Engine model Gasoline, single cylinder, vertical, four stroke, overhead valves
Net weight(KG) 330
Gross weight(KG) 350
Packing size(mm) 1050*850*1200
power(kw) 4.1 3.1
Ratating speed(rpm) 3600
Fuel capacity(L) 3.6 1.9
Lubricating oil(L) 0.6 0.75
Fuel type gasoline diesel
Start up Recoil Hand Start
Vibration frequency 70(HZ)
Nominal amplitude(mm) 0.6
Exciting force(kn) 15
Climbing ability 30%
Speed(KM/h) 3.8
Hydraulic tank Capacity(L) 15 10
Water tank capacity(L) 22
Linear static pressure(N/CM) 45
Type walking single drum roller
Working width(mm) 780
Overall length(mm) 1600
Mchine height(mm) 1060
Steel wheel size(mm) 426×600
