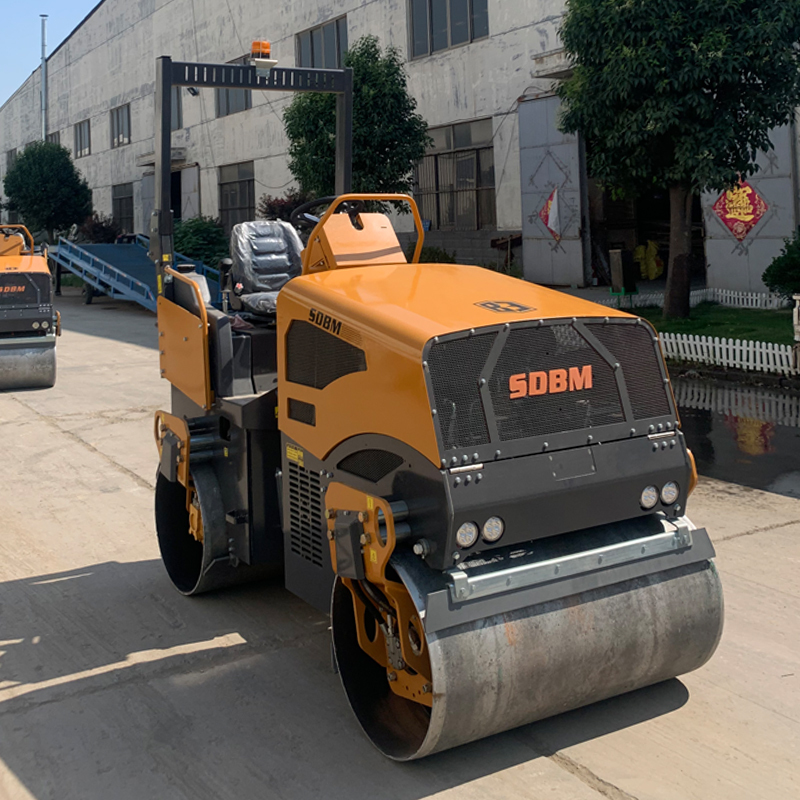

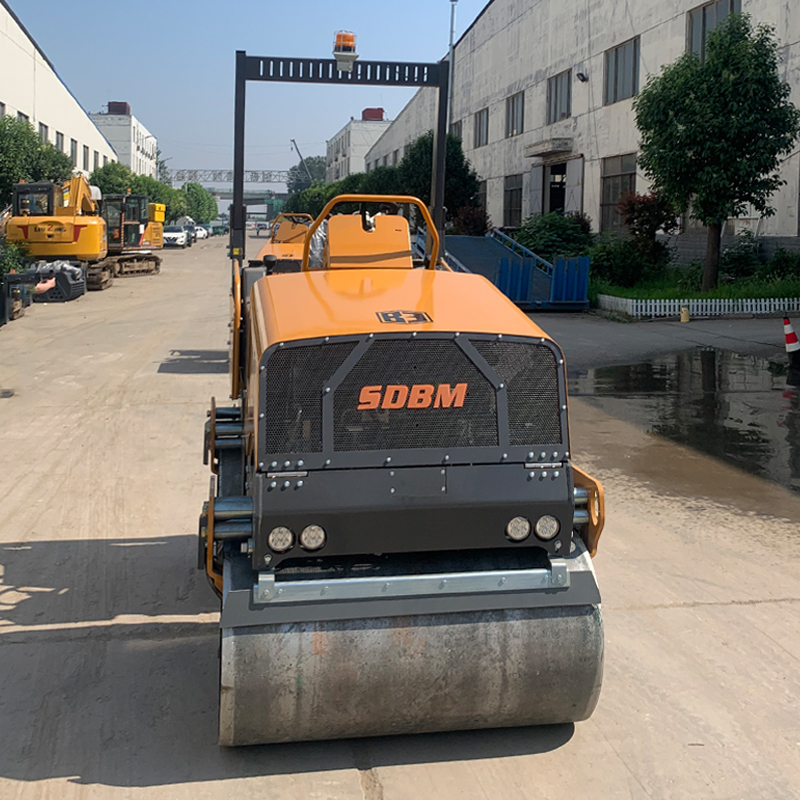

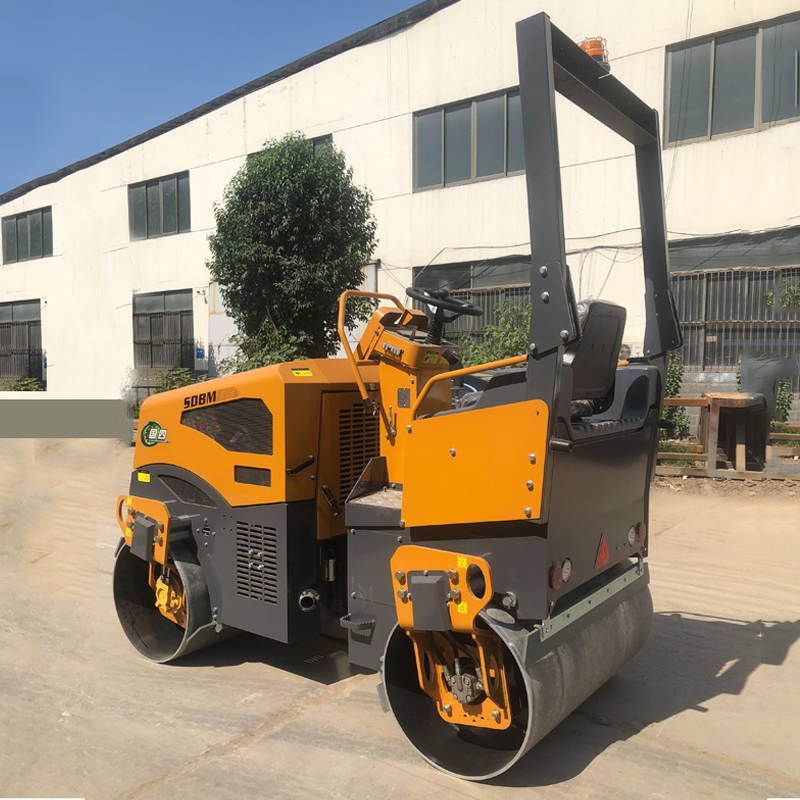

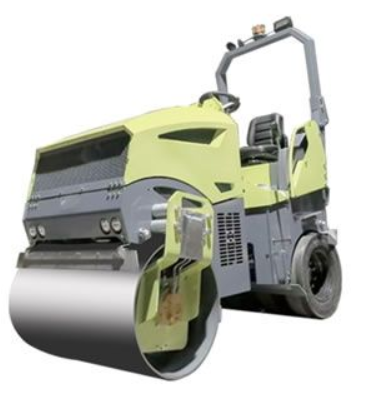

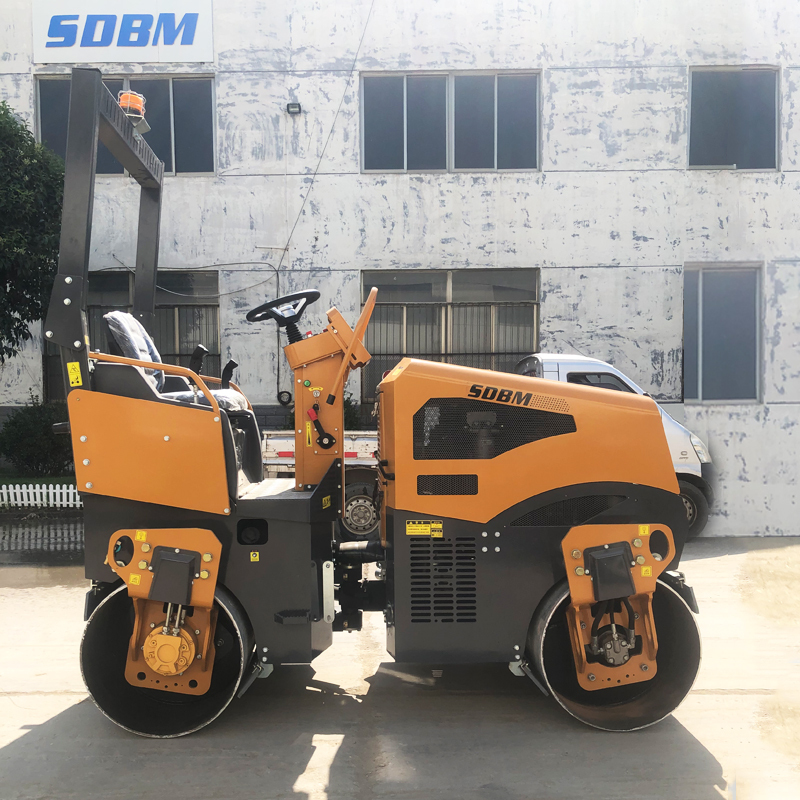

BM-3500 Mini Double Drum Vibratory Road Roller

No.2-02
1.Equipped with famous brand power, quality assurance, superior performance 2.Overall spraying, wide field of vision, beautiful and generous 3.Small working radius, work in narrow areas 4.Adopt domestic famous brand hydraulic pump, motor, high quality and high stability 5. Lengthened armrest, easy to turn, labor-saving
  • BM-3500  Mini Double Drum Vibratory Road Roller
  • BM-3500  Mini Double Drum Vibratory Road Roller
  • BM-3500  Mini Double Drum Vibratory Road Roller
  • BM-3500  Mini Double Drum Vibratory Road Roller
  • BM-3500  Mini Double Drum Vibratory Road Roller
  • BM-3500  Mini Double Drum Vibratory Road Roller

SPECIFICATION

ENGINE
Engine Changchai ZN390B
Engine type Three cylinder, Vertical, water-cooled, four-stroke, diesel
Number of cylinders 3
Output power (KW) 28.5
Rating speed(RPM) 2600
Fuel consupmtion(G/KWH) 240
Lubricating oil volume(L) 5
DRIVING
Electrical equipment(V) 12
Drive mode Variabledisplacement pump, stepless speed change, two wheels drive,motor parallel, 3 driving motors
Walking speed (KM/H) 0-8.5
Theoretical climbing ability(%) 30/40(vibration on/off)
STEERING
Swing angle(°) 30
Steering mode Hydraulic cylinder, articulated steering
Steering system Swing articulated
EXCITING SYSTEM
Vibration wheel Front
Drive form Hydraulic Motors
Vibration frequency (HZ) 60
Vibration amplitude (MM) 0.5
Exciting force(KN) 35
SPRINKLING SYSTEM
Water spray form Intermittent pressure water spray
CAPACITY
Hydraulic oil capacity(L) 50
Fuel capacity(L) 38
Water tank capacity (L) 180
SIZE
Working width(MM) 1370
Overall length(MM) 2545
Machine height(MM) 2565
Turning radius(outer)(MM) 3980
Ground clearance(MM) 330
Wheel track(MM) 1795
Drum size 720*1200mm
Drum thickness(MM) 16
Wheel offset(MM) 50
Tire quantity 4
Tire size 9.5/65-15
WEIGHT
Weight(KG) 3500
Static load(N/CM) 130
