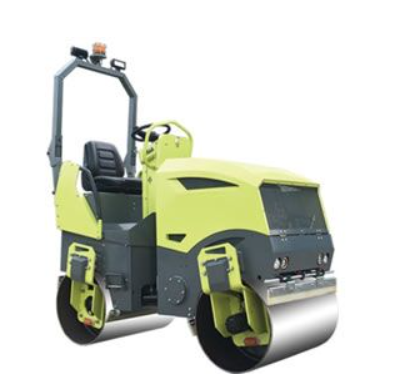

• BM-Mini Double Drum Vibratory Road Roller

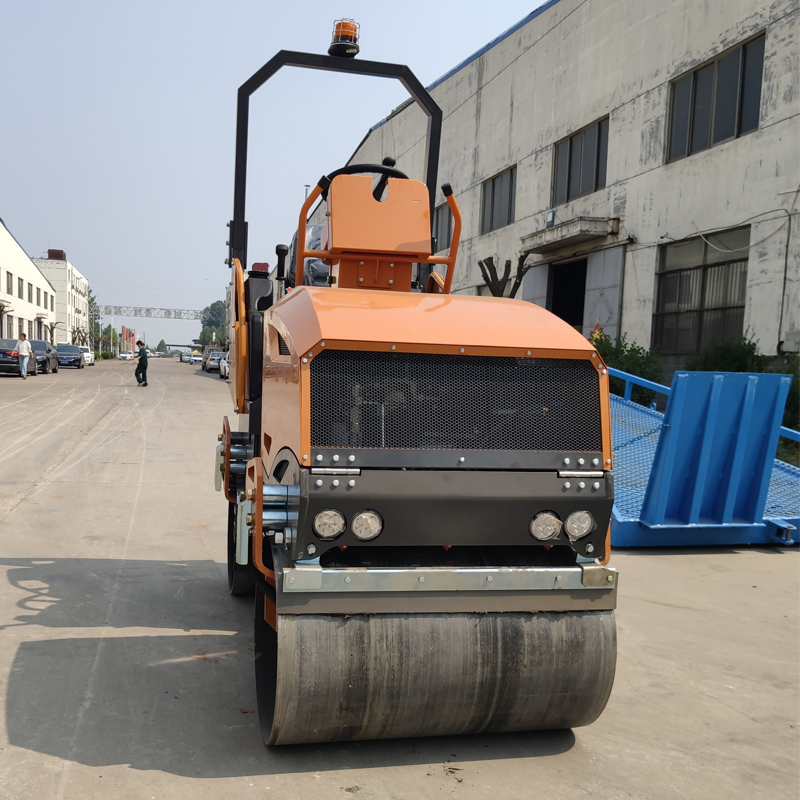

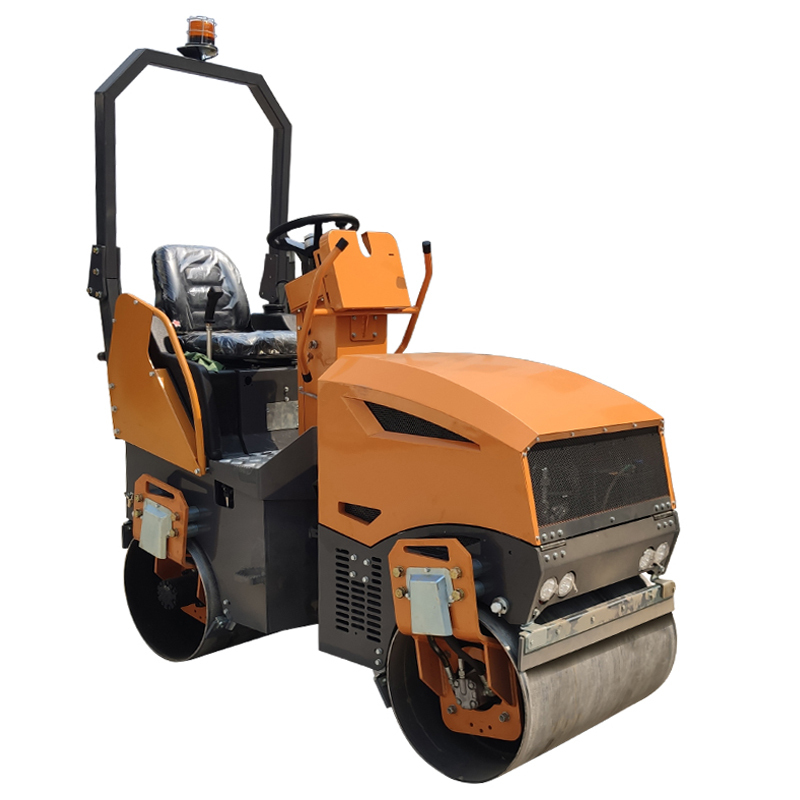

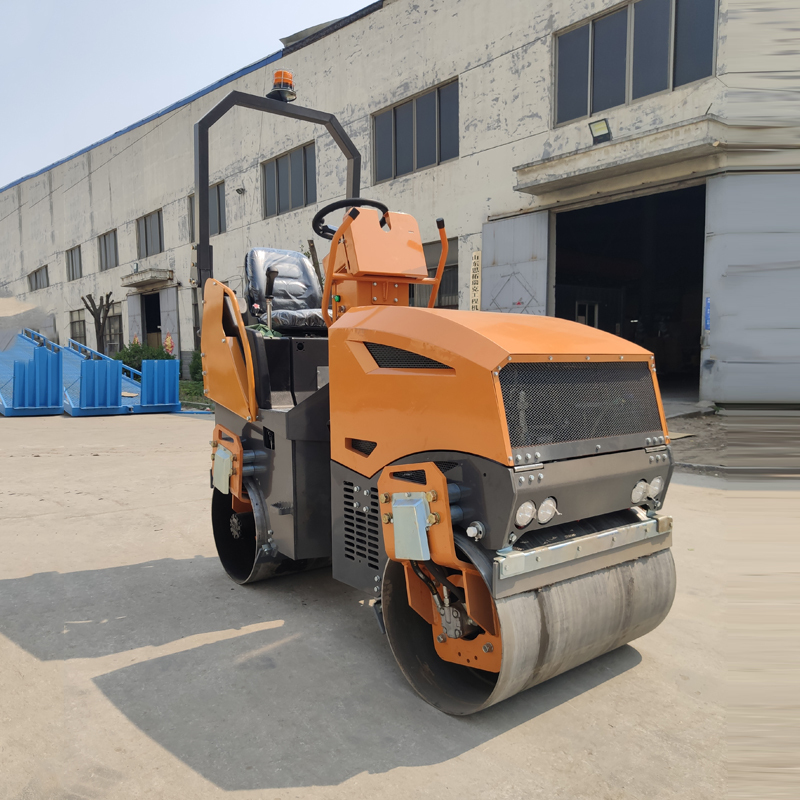

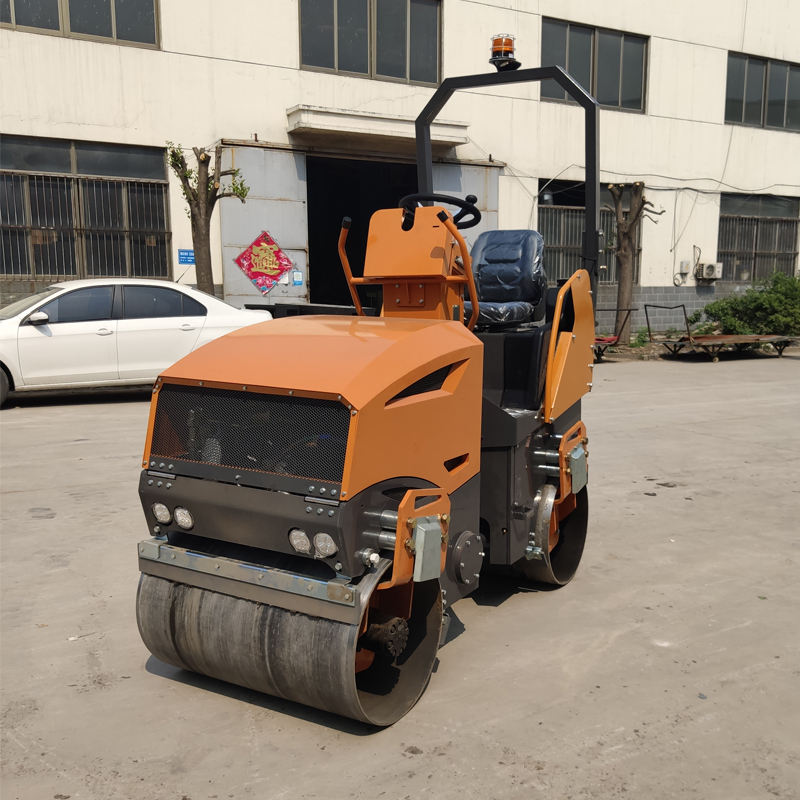

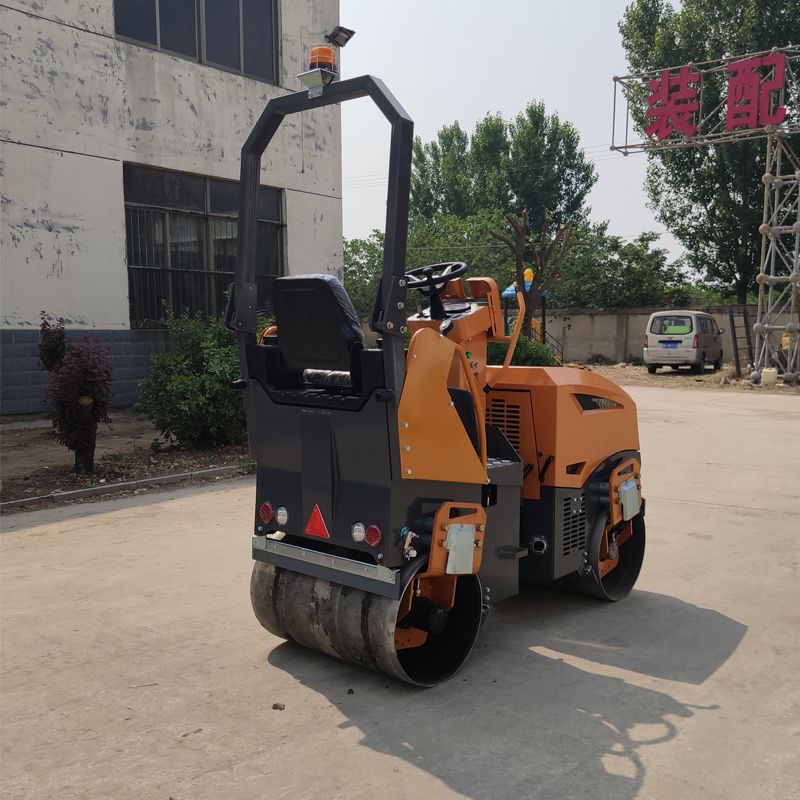

  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller

BM-2000 Mini Double Drum Vibratory Road Roller

No.2-04
1.Equipped with famous brand power, quality assurance, superior performance 2.Overall spraying, wide field of vision, beautiful and generous 3.Small working radius, work in narrow areas 4.Adopt domestic famous brand hydraulic pump, motor, high quality and high stability 5. Lengthened armrest, easy to turn, labor-saving
  • BM-Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller
  • BM-2000 Mini Double Drum Vibratory Road Roller

SPECIFICATION

Item No./Details BM2000
DRIVE
Engine YANMAR 3TNV76-CSA
Engine type Four-stroke, water-cooled, diesel engine
Number of cylinders 3
Output Power (KW) 18.6
Rating Speed(rpm) 3200
Electrical equipment(V) 12
Drive mode Variable displacement pump, stepless speed change, two wheels
WALKING CHARACTERISTICS
Walking speed (KM/h) 0-8
Theoretical climbing ability 30%
STEERING
Steering mode Hydraulic steering
Steering system Swing articulated
EXCITATION SYSTEM
Vibration wheel Before
Drive form Hydraulic motors
Vibration frequency (HZ) 65
Vibration amplitude (MM) 0.5
Exciting force(KN) 25
BRAKE
Working brake Variable displacement pump
SPRINKLER SYSTEM
Water spray form Intermittent pressure water spray
CAPACITY
Hydraulic oil capacity(L) 46
Fuel capacity(L) 30
Water tank capacity (L) 60L
SIZE
Working width(MM) 960
Overall length(MM) 2295
Machine Height(MM) 1595
Turning radius(outer)(MM) 2900
Drum size 560*900mm*2
Wheel track(MM) 1750
WEIGHT
Weight(KG) 2000
