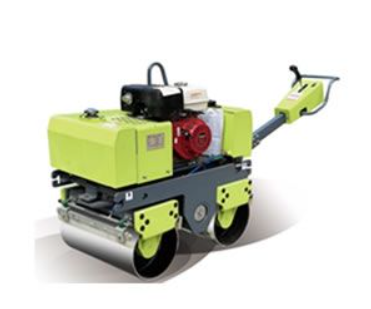

BM-60 Mini Double Drum Vibratory Hand-pushed Road Roller

No.2-10
1.Equipped with famous brand power, quality assurance, superior performance 2.Overall spraying, wide field of vision, beautiful and generous 3.Small working radius, work in narrow areas 4.Adopt domestic famous brand hydraulic pump, motor, high quality and high stability 5. Lengthened armrest, easy to turn, labor-saving
  • BM-60 Mini Double Drum Vibratory Hand-pushed Road Roller

SPECIFICATION

Model SVH-60 SVH-60C SVH-60S
WEIGHT
Operating weight 640
SIZE
Working Width(MM) 700
Overall length(MM) 1350
Machine height(MM) 1700
Width of wheel(MM) 660
Diameter of wheel(MM) 380
Tread(MM) 520
DRIVE
Engine manufacturer HONDA CHANGCHAI GOLDEN FISH
Engine model GX390 186F RD90N-1
Engine type Gasoline, single cylinder, vertical, air cooling, four stroke,overhead valves Diesel, single cylinder, vertical, air cooling,four stroke Diesel, single cylinder, horizontal, water cooling,four stroke
Output power(HP/KW) 13/9.7 9/6.6 8/5.88
Ratating speed(rpm) 3600 3600 2400
Electrical equipment(V) 12
Drive mode Variable displacement pump,stepless speed change, two drums
WALKING CHARACTERISTICS
Speed(KM/H) 0-3
Theoretical climbing ability 20%
BRAKE
Working brake Variable displacement pump
STEERING
Steering mode Manual
EXCITATION SYSTEM
Drive form Mechanical transmission electromagnetic clutch
Vibration frequency(HZ) 55
Vibration amplitude(MM) 0.5
Exciting force(KN) 20
Capacity
Hydraulic oil capacity 25
Fuel capacity(L) 6.5 3.5 10
Water tank capacity 40
