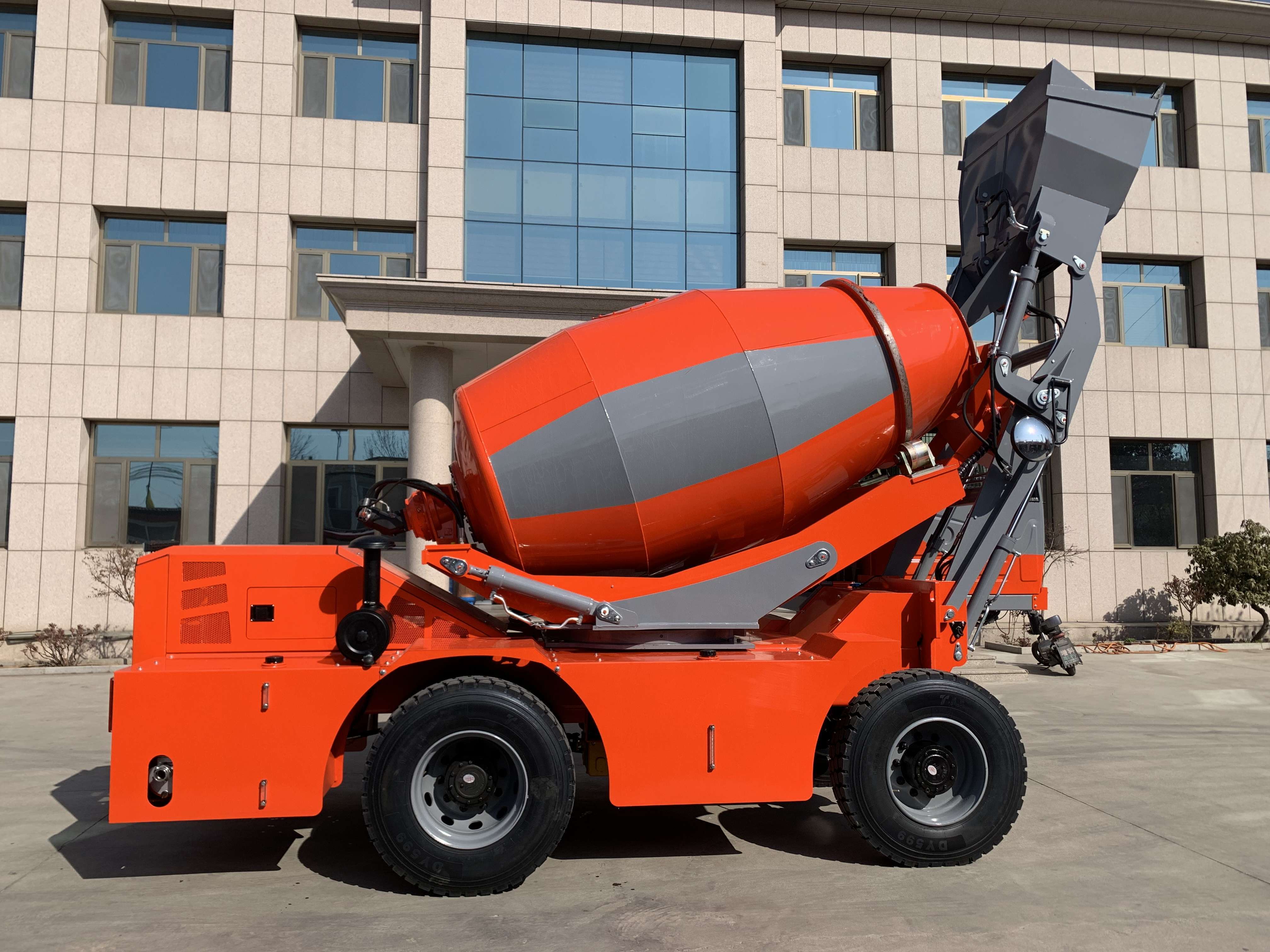

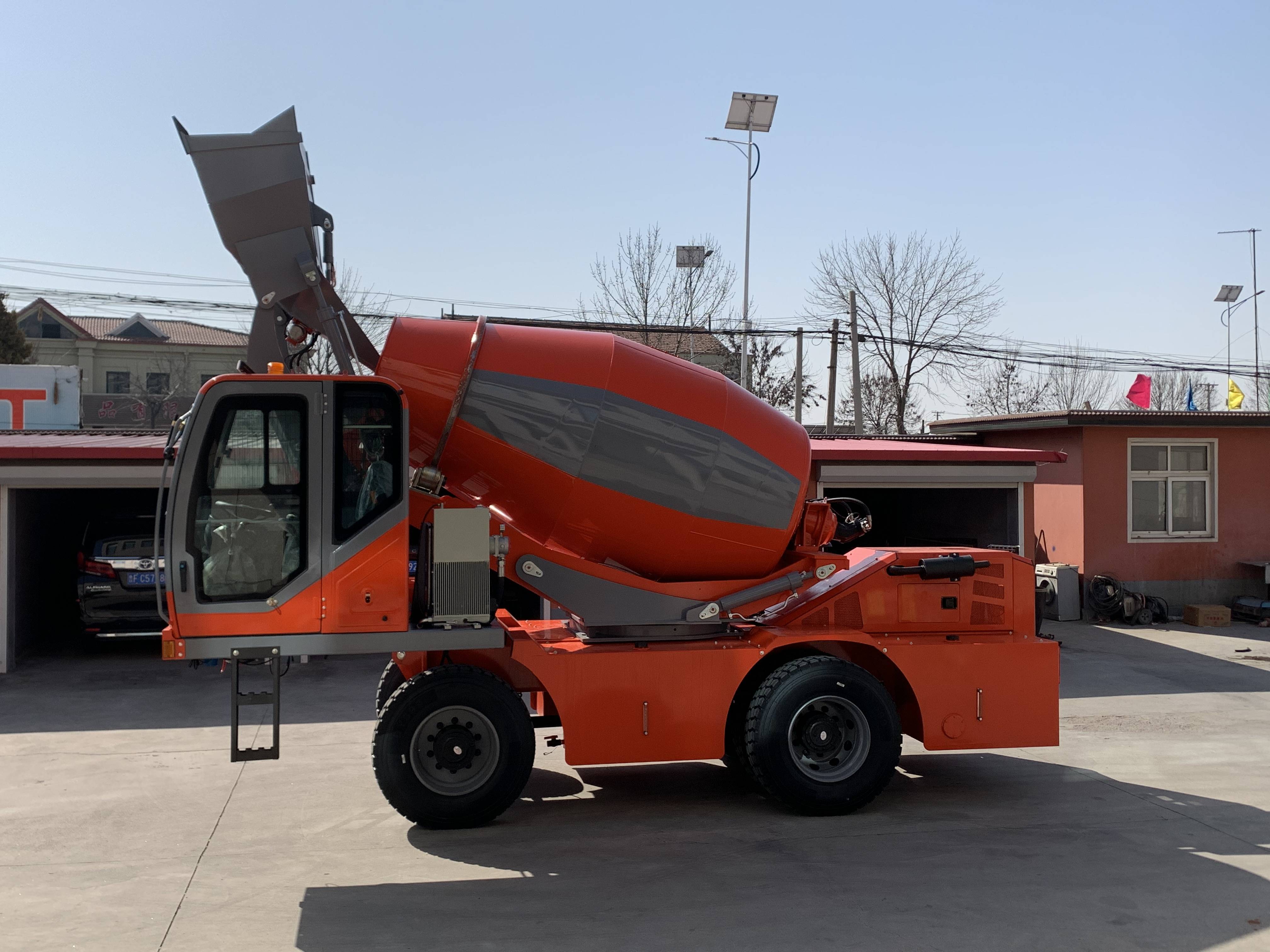

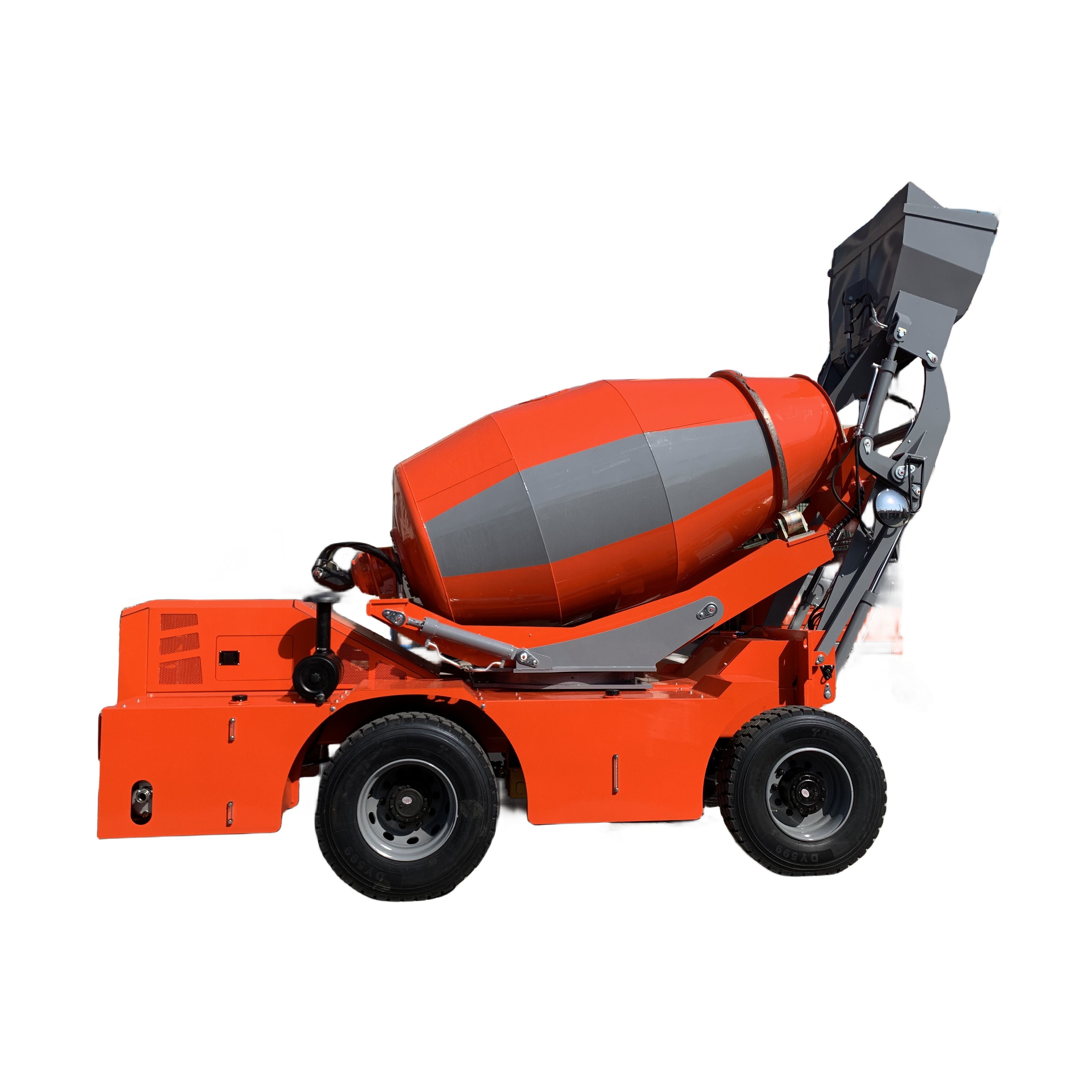

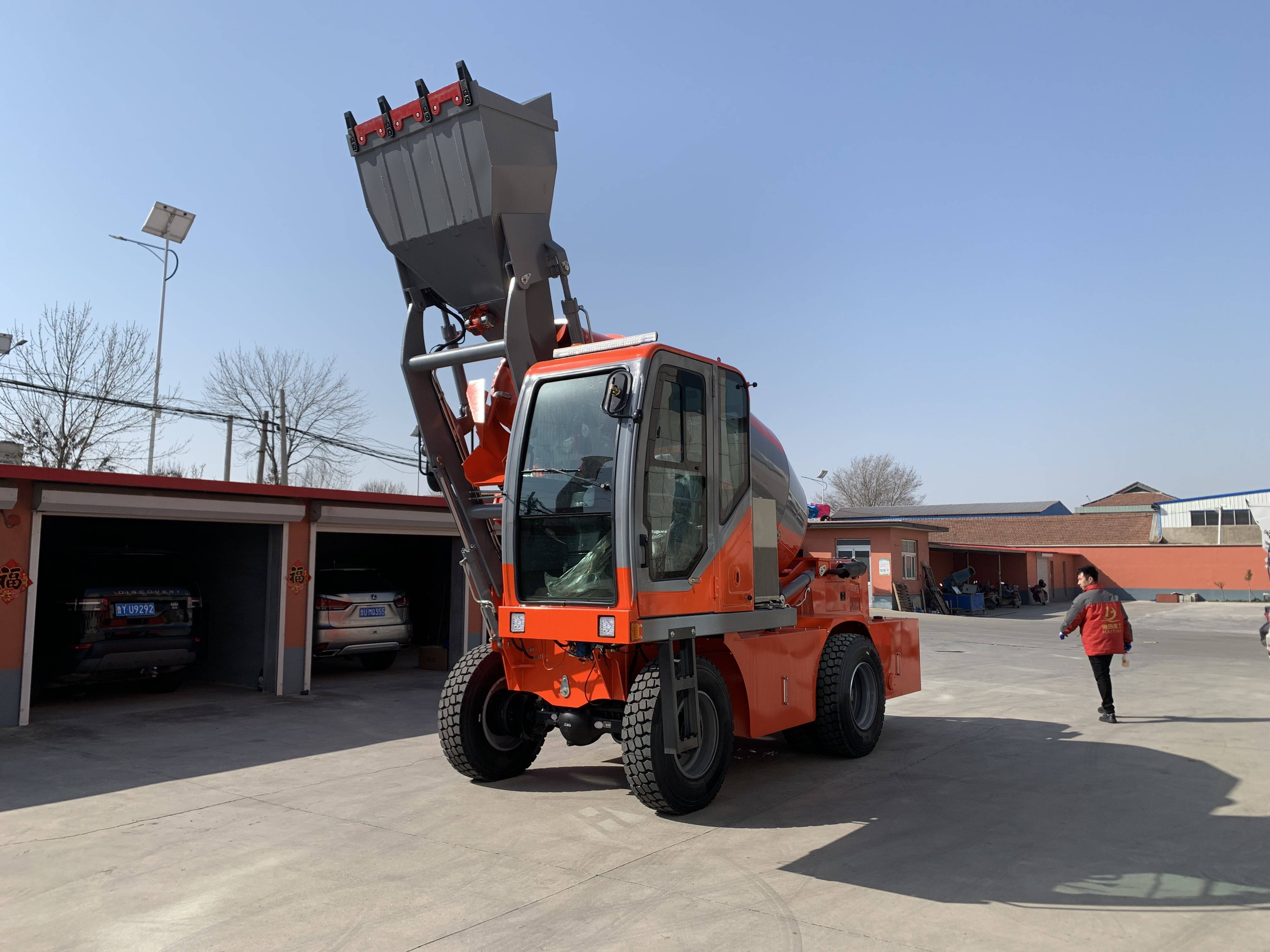

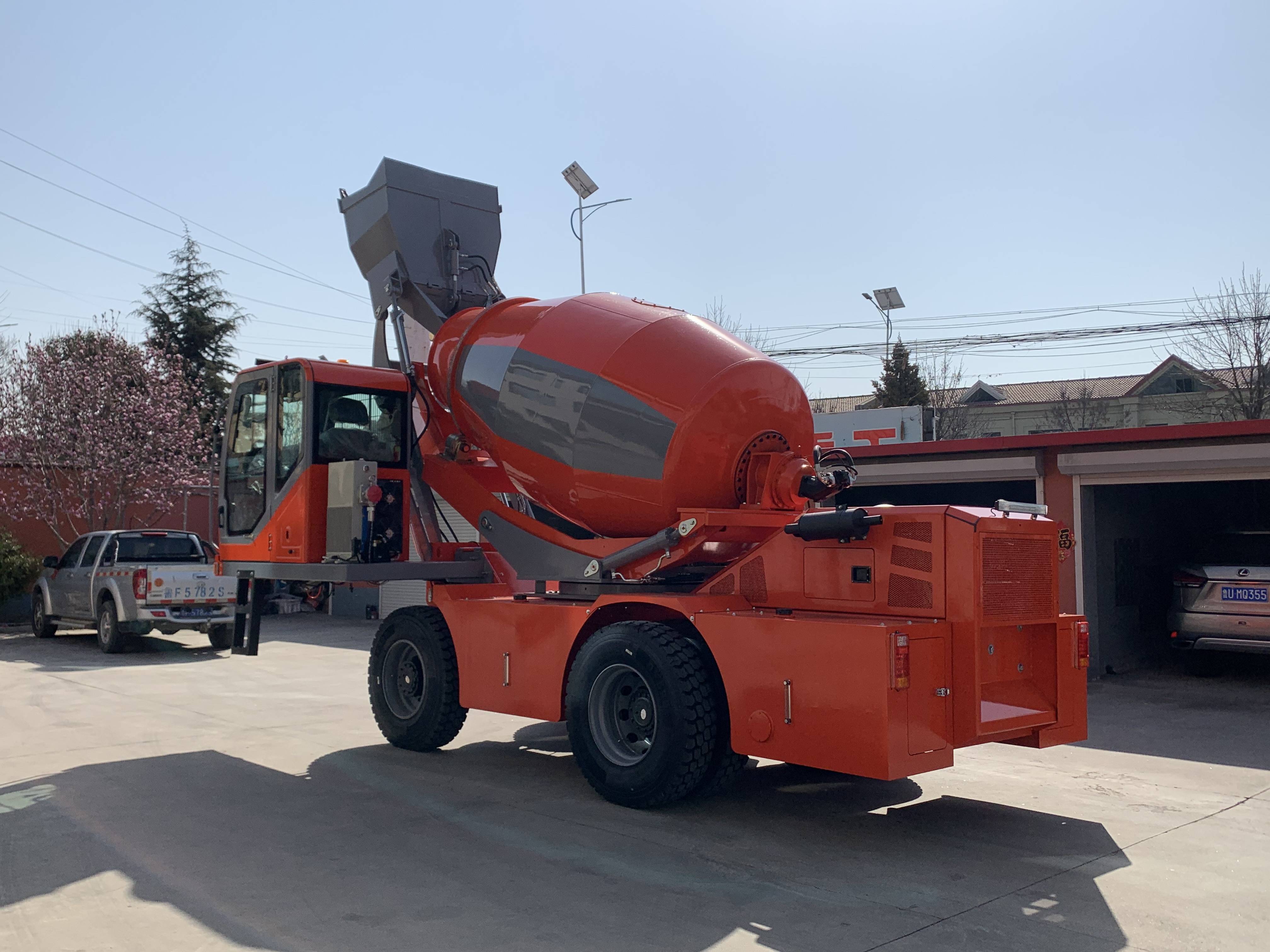

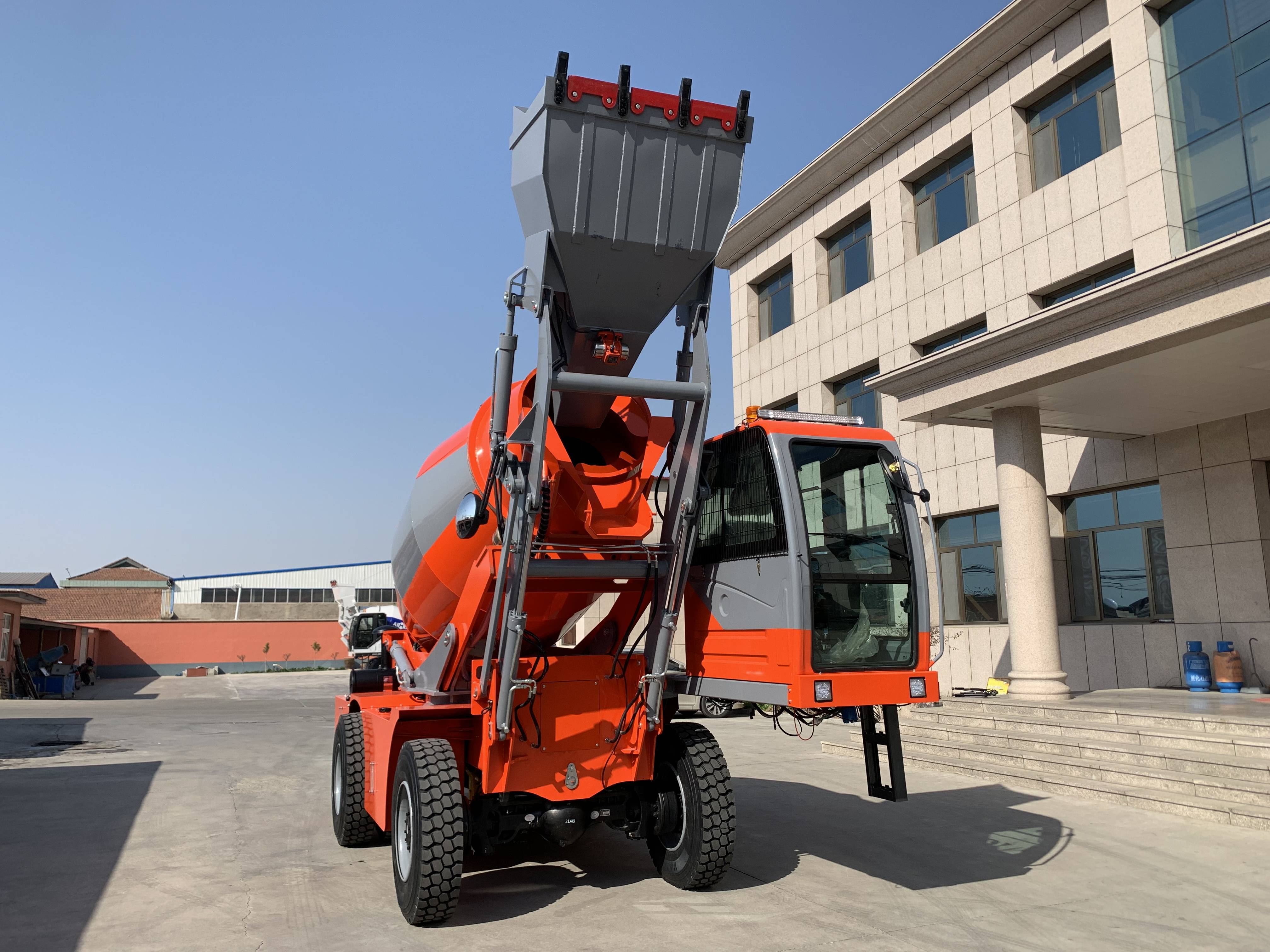

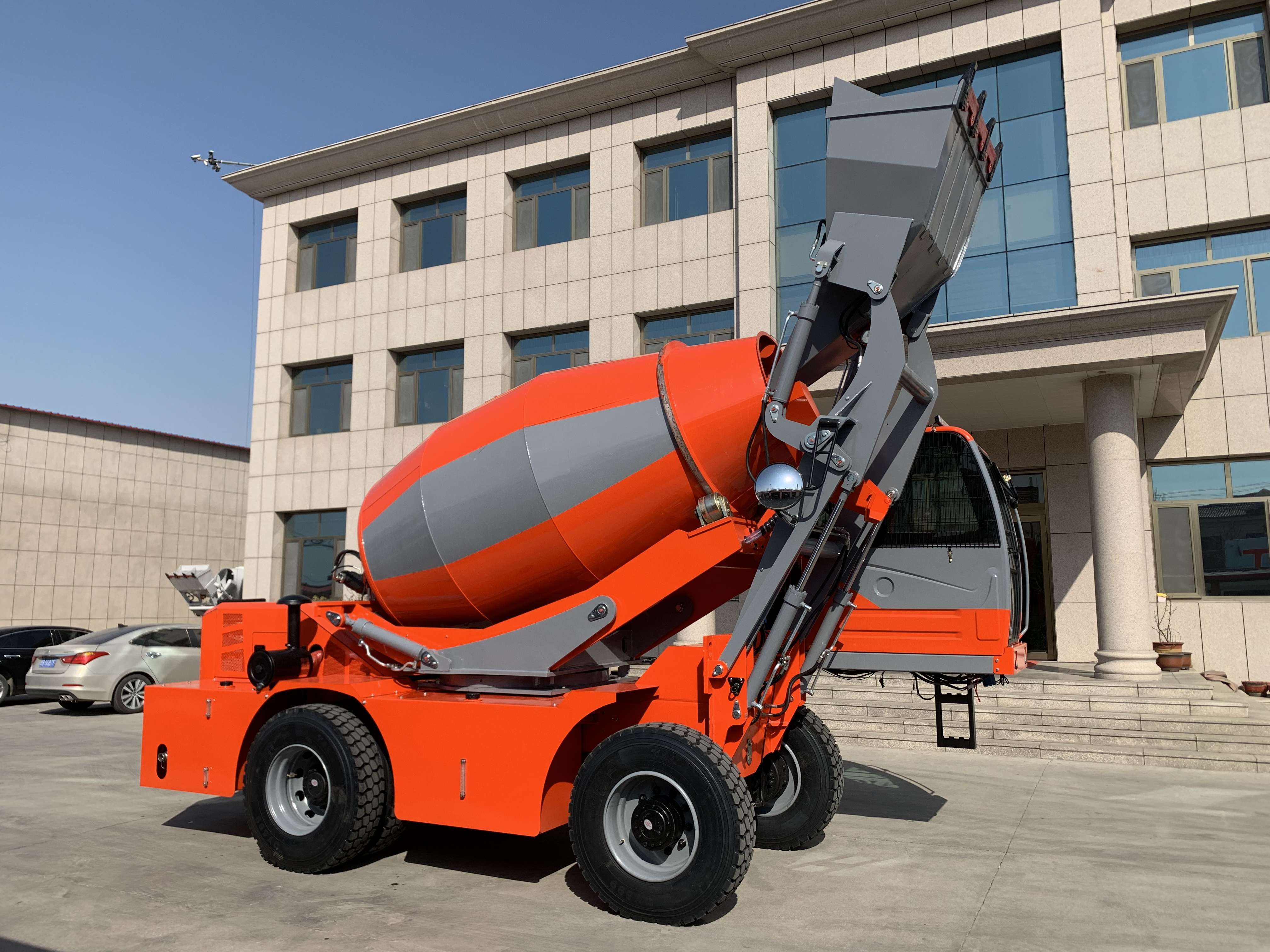

4 Cubic Meters Self-loading Concrete Mixer truck integral type

No.102
The mobile self-loading concrete mixer truck is a relatively popular small automatic loading mixer, which can be operated by 1-2 people. It is mostly used for road repair, bridge repair, tunnel repair, and infrastructure construction.
  • 4 Cubic Meters Self-loading Mixer truck
  • 4 Cubic Meters Self-loading Mixer truck
  • 4 Cubic Meters Self-loading Mixer truck
  • 4 Cubic Meters Self-loading Mixer truck
  • 4 Cubic Meters Self-loading Mixer truck
  • 4 Cubic Meters Self-loading Mixer truck
  • 4 Cubic Meters Self-loading Concrete Mixer truck
SPECIFICATION

QINGONG 4 Cubic meters Self-loading Concrete Mixer Truck

Output per lot: 4.0 cubic metres

Drum rotation: discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered

CAPACITY: Up to 5 batches per hour, 21 cubic hours

ENGINE: Yuchai power ycd4p22t 130, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 95KW

Drive mode: 4-wheel drive

CLIMB: 45 degrees

SPEED: dual altitude, low speed 0-25 km/h, high speed 0-50 km/h

Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat

Hydraulic System: closed oil, axial piston motor, three gear pump to participate in the work, tank adjustable speed

JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank

Bucket: 0.7 cubic, hydraulic gate

Clay Groove: equipped with two 150CM Removable Chute to increase the length of discharge

Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, hydraulic high-pressure car washing machine

BRAKES: internal hub brakes and emergency brakes on 4 wheels, activated by a small Servo pump on a separate two-loop, negative-pressure parking brake, front and rear axles equipped with internal wheels

Steering: assisted by a hydraulic power steering system on two steering wheels

TIRE: 12R22.5 steel wire high pressure vacuum tire

Power System: 24V

Fuel tank : diesel fuel tank 200 litres,
Hydraulic fuel tank: 200 litres
Water tank: 2 * 380 Litres Water tank
Weight: 10300KG

Length, width, height 7500mm * 2850mm * 3500mm

wheelbase / Wheelbase: 2590mm / 2200mm

Turning radius: 5860 mm

Others: Q345 manganese steel frame, luxury cab, driving image, cement bucket, air conditioning
